Lesson 2: From RNA-seq counts to data exploration

Welcome

This lesson is for you if you are just starting to analyze transcriptomics data (RNA-seq). We will use real data from Mexican women with lupus and healthy controls to walk, step by step, the path from a table of numbers to a biological interpretation.

What you need to know beforehand: the basics of R (creating objects, using functions) and, if possible, a little dplyr and ggplot2. You do not need to know about RNA-seq: we explain it as we go.

By the end you will be able to:

Explain what a count matrix and a metadata table are.
Build a DESeqDataSet object, which is the structure used by DESeq2.
Explain why we need to normalize and how DESeq2 does it.
Transform the data (VST) and explore it with gene plots, heatmaps, and PCA.
Relate what you see in the plots to the biology of lupus.

Estimated time: 1 to 1.5 hours.

Lesson map

flowchart TB
  subgraph pre["Already done in the package"]
    direction LR
    A["Reads (FASTQ)"] -- "Salmon + tximport" --> B["filtered_txi
counts"]
    M["metadata_cleaned
one row per sample"]
    V["volunteer_info
one row per volunteer"]
  end
  subgraph lec["In this lesson"]
    direction LR
    C["DESeqDataSet"] --> D["Filtering"] --> E["Normalization"] --> F["VST"] --> G["Exploration
genes · heatmap · PCA"]
  end
  pre --> lec

Glossary

These are the terms we will use. Come back here whenever you need to.

Read: a sequenced fragment of RNA.
Count: number of reads assigned to a gene in a sample.
Count matrix: table of genes (rows) × samples (columns).
Metadata: information that describes each sample.
Library size: total number of reads in a sample (sequencing depth).
Normalization: correction that makes samples comparable to each other.
VST: logarithm-like transformation that stabilizes the variance.
z-score: standardized value of a gene (in standard deviations from its mean).
PCA: technique that summarizes many variables into a few axes.
Batch effect: differences between samples caused by when or how they were processed, not by biology.
Key column: column shared by two tables that is used to join them (here, Volunteer_ID).
ISG (interferon-stimulated genes): genes that are switched on in response to interferon.
SLEDAI (SLE Disease Activity Index): lupus activity score; higher = more active disease.

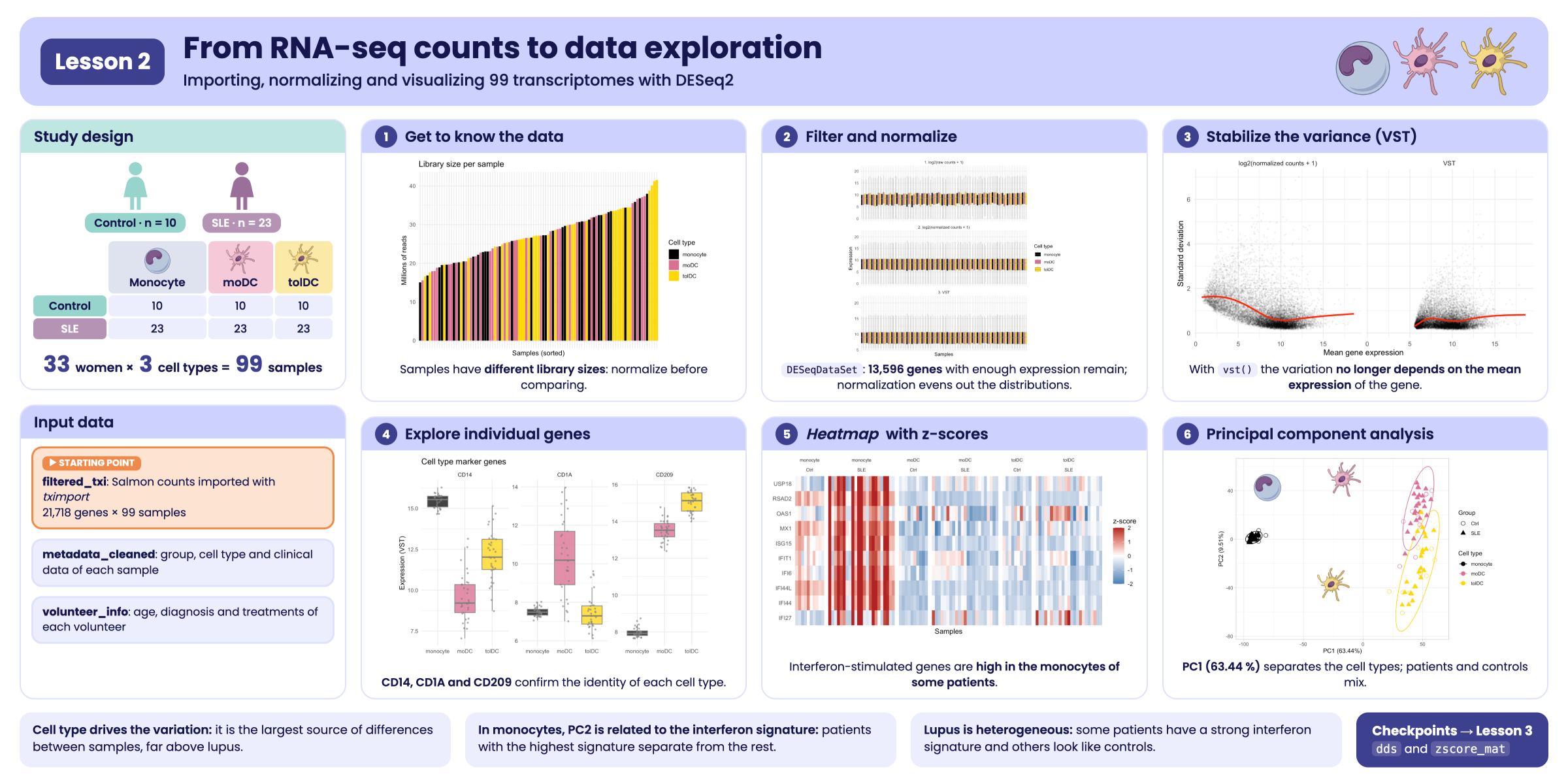

Visual summary of lesson 2.

1. Biological context: what are we studying?

Systemic lupus erythematosus (SLE) is an autoimmune disease: the immune system mistakenly attacks the body’s own tissues. It mostly affects women (about 9 out of 10 cases). One of its best-known molecular features is the interferon signature: in patients, many genes that normally respond to viral infections, called interferon-stimulated genes (ISGs), are switched on.

In this study, three types of immune cells were analyzed:

Monocytes (monocyte): cells that circulate in the blood. They were obtained directly from each participant.
Monocyte-derived dendritic cells (moDC): obtained by culturing monocytes with GM-CSF and IL-4. They are “activating”, because they present antigens and switch on the immune response.
Tolerogenic dendritic cells (tolDC): obtained by culturing monocytes with GM-CSF and IL-10. Their role is to “calm down” the immune response and promote tolerance.

Study design: 33 Mexican women took part, 10 healthy controls (Ctrl) and 23 patients with lupus (SLE). All three cell types were obtained from each one, giving 33 × 3 = 99 samples. The volunteers were recruited between June 2022 and February 2023. The data come from the article:

Hernández-Ledesma AL, Coss-Navarrete EL, et al (2026) Gene expression profiling of dendritic cell tolerance dysfunction in women with systemic lupus erythematosus. Front. Immunol. 17:1771959. doi: 10.3389/fimmu.2026.1771959.

Our guiding question: does gene expression change in these cells when a person has lupus?

2. RNA-seq in two minutes

RNA is extracted from the cells. Each active gene produces copies of RNA: the more active, the more copies.
The RNA is fragmented and sequenced. Each fragment that is read is called a read.
A program (here, Salmon) identifies which gene each read belongs to and counts them.

The result is a table: how many reads each gene has in each sample. We call this table a count matrix. More reads means more expression, but only in relative terms, as we will see in the normalization section.

Good news: the heaviest steps (aligning the reads with Salmon and importing them with tximport) are already done. The package includes the result, ready to analyze.

3. Setup

Installation

Install the package from GitHub and DESeq2 from Bioconductor. You only need to do this once.

install.packages(c("remotes", "BiocManager", "tidyverse"))
remotes::install_github("EveliaCoss/GeneExprLupusMx", build_vignettes = TRUE)
BiocManager::install("DESeq2")

Load the packages

library(GeneExprLupusMx) # our data
library(DESeq2)          # RNA-seq normalization and analysis
library(tidyverse)       # table manipulation (dplyr) and plots (ggplot2)
library(ggrepel)         # non-overlapping labels in ggplot2
library(cowplot)         # combine several plots into a panel

# Large package objects: downloaded only the first time (see ?download_data)
filtered_txi <- download_data("filtered_txi")

Order matters. DESeq2 and dplyr have functions with the same name (for example, count() and select()). R uses the one from the last package loaded; that is why we load tidyverse last. If in doubt, write the package explicitly: dplyr::count().

We define the colors we will use in all the plots, so that each cell type and each group always have the same color:

cell_color  <- c(monocyte = "black", moDC = "palevioletred", tolDC = "gold1")
group_color <- c(Ctrl = "#96d4ccff", SLE = "#b493b4ff")

4. Step 1: get to know the data

Before analyzing anything, you have to look at the data. This step prevents most errors.

4.1 The count matrix: `filtered_txi`

filtered_txi is a list with several matrices. The most important one is counts:

names(filtered_txi)
#> [1] "abundance"           "counts"              "length"
#> [4] "countsFromAbundance"
dim(filtered_txi$counts) # genes x samples
#> [1] 21718    99
filtered_txi$counts[1:5, 1:4]
#>          QR011_0   QR011_1  QR011_3 QR013_0
#> A1BG     179.000   134.000  401.000 163.000
#> A1BG-AS1  69.977    76.949  205.607  76.942
#> A1CF       0.000     0.000    0.000   0.000
#> A2M       16.000 27777.937 3700.000  29.584
#> A2M-AS1   11.000    14.063   12.000  24.416

Rows = genes (21,718 genes, identified by their symbol, for example A2M).
Columns = samples (99). Each sample name has two parts: QR011_1 = patient QR011, cell type 1 (_0 = monocyte, _1 = moDC, _3 = tolDC).

Notice two details:

Some numbers have decimals. Salmon estimates the counts, because some reads could come from more than one gene. There is no need to round them by hand: DESeq2 will do it for us.
There are many zeros. What proportion of the table is zero?

mean(filtered_txi$counts == 0)
#> [1] 0.3492151

And the values are very uneven. Let us look at the first sample:

summary(filtered_txi$counts[, 1])
#>     Min.  1st Qu.   Median     Mean  3rd Qu.     Max.
#>      0.0      0.0     30.0    873.3    514.8 432335.0

Half of the genes have few reads and a few have hundreds of thousands. This unevenness will matter later.

4.2 The metadata: `metadata_cleaned`

The metadata describe who each sample is: its group, cell type, age, treatment, disease activity, etc.

metadata_cleaned %>%
  dplyr::select(sample_ID, Group, Cell_type, Age, GC, SLEDAI_category) %>%
  head()
#>         sample_ID Group Cell_type Age GC SLEDAI_category
#> QR011_0   QR011_0  Ctrl  monocyte  25 No            Zero
#> QR011_1   QR011_1  Ctrl      moDC  25 No            Zero
#> QR011_3   QR011_3  Ctrl     tolDC  25 No            Zero
#> QR013_0   QR013_0  Ctrl  monocyte  23 No            Zero
#> QR013_1   QR013_1  Ctrl      moDC  23 No            Zero
#> QR013_3   QR013_3  Ctrl     tolDC  23 No            Zero

How many samples are there of each combination?

metadata_cleaned %>%
  dplyr::count(Group, Cell_type)
#>   Group Cell_type  n
#> 1  Ctrl      moDC 10
#> 2  Ctrl  monocyte 10
#> 3  Ctrl     tolDC 10
#> 4   SLE      moDC 23
#> 5   SLE  monocyte 23
#> 6   SLE     tolDC 23

The three samples from the same patient are not independent: they share her genetics, age, and clinical history. Let us store the identifier of each volunteer in a Volunteer_ID column:

metadata_cleaned$Volunteer_ID <- factor(sub("_.*", "", metadata_cleaned$sample_ID))
nlevels(metadata_cleaned$Volunteer_ID) # number of participants
#> [1] 33

4.3 Do the counts and the metadata match?

This is the most important check of the whole analysis: column 1 of the count matrix must correspond to row 1 of the metadata, column 2 to row 2, and so on. If the order does not match, all conclusions will be wrong and R will not warn you.

all(colnames(filtered_txi$counts) == metadata_cleaned$sample_ID)
#> [1] TRUE

TRUE: we can continue.

Challenge 1. How many patients with lupus have nephritis (kidney damage)? Hint: each patient appears three times; filter a single cell type before counting.

Show solution

metadata_cleaned %>%
  filter(Cell_type == "monocyte", Group == "SLE") %>%
  dplyr::count(Nephritis)
#>   Nephritis  n
#> 1        No 20
#> 2        Si  3

4.4 Each volunteer’s information: `volunteer_info`

metadata_cleaned has one row per sample. But some data belong to the person, not to the sample: when she was recruited, how many years she has had the diagnosis, or which treatments she receives. If we put them in metadata_cleaned, each value would be repeated three times. That is why they live in another table, volunteer_info, with one row per volunteer. If you did the lesson Meeting the participants, you already know it:

dim(volunteer_info) # 33 volunteers
#> [1] 33 16
head(volunteer_info)
#>   Volunteer_ID Volunteer Group Age_years Years_with_diagnosis
#> 1        QR011         1  Ctrl        25                   NA
#> 2        QR013         2  Ctrl        23                   NA
#> 3        QR014         3   SLE        32                    5
#> 4        QR017         4   SLE        22                    4
#> 5        QR020         5   SLE        42                    5
#> 6        QR021         6   SLE        23                    4
#>   Age_at_diagnosis_years SLEDAI Nephritis Treatment_GCC GCC_drug GCC_dose_mg
#> 1                     NA     NA      <NA>            NA     <NA>          NA
#> 2                     NA     NA      <NA>            NA     <NA>          NA
#> 3                     27      1       Yes          TRUE      PDN           5
#> 4                     18      1        No          TRUE      PDN           8
#> 5                     37      0        No         FALSE     <NA>          NA
#> 6                     19      0        No         FALSE     <NA>          NA
#>   Treatment_AM Treatment_MMF Treatment_AZT Treatment_MTT Time_of_recruitment
#> 1           NA            NA            NA            NA          2022-06-01
#> 2           NA            NA            NA            NA          2022-06-01
#> 3         TRUE          TRUE         FALSE         FALSE          2022-06-01
#> 4        FALSE         FALSE         FALSE         FALSE          2022-06-01
#> 5         TRUE         FALSE          TRUE         FALSE          2022-06-01
#> 6        FALSE         FALSE         FALSE         FALSE          2022-06-01

The two tables share the Volunteer_ID column. It is the key column: it will let us join them when we need to (you will do this in Challenge 4).

With this table, Challenge 1 is solved in one line, because each person appears only once:

volunteer_info %>%
  dplyr::count(Group, Nephritis)
#>   Group Nephritis  n
#> 1  Ctrl      <NA> 10
#> 2   SLE        No 20
#> 3   SLE       Yes  3

How many volunteers were recruited each month?

volunteer_info %>%
  mutate(Recruitment = format(Time_of_recruitment, "%Y-%m")) %>% # "2022-06", "2022-07", ...
  dplyr::count(Recruitment, Group) %>%
  pivot_wider(names_from = Group, values_from = n, values_fill = 0)
#> # A tibble: 8 × 3
#>   Recruitment  Ctrl   SLE
#>   <chr>       <int> <int>
#> 1 2022-06         2     4
#> 2 2022-07         0     1
#> 3 2022-08         3     1
#> 4 2022-09         0     1
#> 5 2022-10         1     4
#> 6 2022-12         1     1
#> 7 2023-01         2    10
#> 8 2023-02         1     1

Notice January 2023: 10 patients and only 2 controls were recruited. Remember this detail; we will come back to it in the PCA.

5. Step 2: create the `DESeqDataSet` object

DESeq2 stores everything in a single object, like a file folder with three parts:

Part	What it contains	How to see it
Counts	The genes × samples matrix	`counts(dds)`
Metadata	The information on each sample	`colData(dds)`
Design	Which variables explain the differences	`design(dds)`

Before creating it we choose the reference levels, that is, what we compare against. The natural choice is to compare against healthy controls (Ctrl) and against monocytes, the cell of origin.

metadata_cleaned$Group     <- relevel(metadata_cleaned$Group, ref = "Ctrl")
metadata_cleaned$Cell_type <- relevel(metadata_cleaned$Cell_type, ref = "monocyte")

dds <- DESeqDataSetFromTximport(txi     = filtered_txi,
                                colData = metadata_cleaned,
                                design  = ~ Cell_type + Group)
dds
#> class: DESeqDataSet
#> dim: 21718 99
#> metadata(1): version
#> assays(2): counts avgTxLength
#> rownames(21718): A1BG A1BG-AS1 ... ZZEF1 ZZZ3
#> rowData names(0):
#> colnames(99): QR011_0 QR011_1 ... QR108_1 QR108_3
#> colData names(15): sample_ID Group ... SLEDAI_category Volunteer_ID

The formula ~ Cell_type + Group reads: “the expression of each gene depends on the cell type and the group (lupus or control)”.

When using DESeqDataSetFromTximport(), the message using counts and average transcript lengths from tximport appears. It means that DESeq2 also stored the transcript length of each gene in each sample and will use it when normalizing.

6. Step 3: filter lowly expressed genes

A gene with 0 or 2 reads in almost all samples provides no information: it is noise. We remove it.

Rule: we keep genes with at least 10 reads in at least 10 samples. We chose 10 samples because that is the size of the smallest group (10 controls per cell type). This way we do not discard a gene that is only expressed in that group.

keep <- rowSums(counts(dds) >= 10) >= 10
table(keep) # FALSE = removed, TRUE = kept
#> keep
#> FALSE  TRUE
#>  8122 13596
dds <- dds[keep, ]
dim(dds)
#> [1] 13596    99

7. Step 4: normalization

7.1 Why do we need to normalize?

Imagine two samples with the same gene X:

tibble(sample      = c("A", "B"),
       total_reads = c(10e6, 20e6),
       geneX_reads = c(100, 200)) %>%
  mutate(geneX_per_million = geneX_reads / total_reads * 1e6)
#> # A tibble: 2 × 4
#>   sample total_reads geneX_reads geneX_per_million
#>   <chr>        <dbl>       <dbl>             <dbl>
#> 1 A         10000000         100                10
#> 2 B         20000000         200                10

Sample B has twice as many reads of gene X, but it was also sequenced twice as deeply. Once corrected, gene X is expressed equally in both. That correction is normalization.

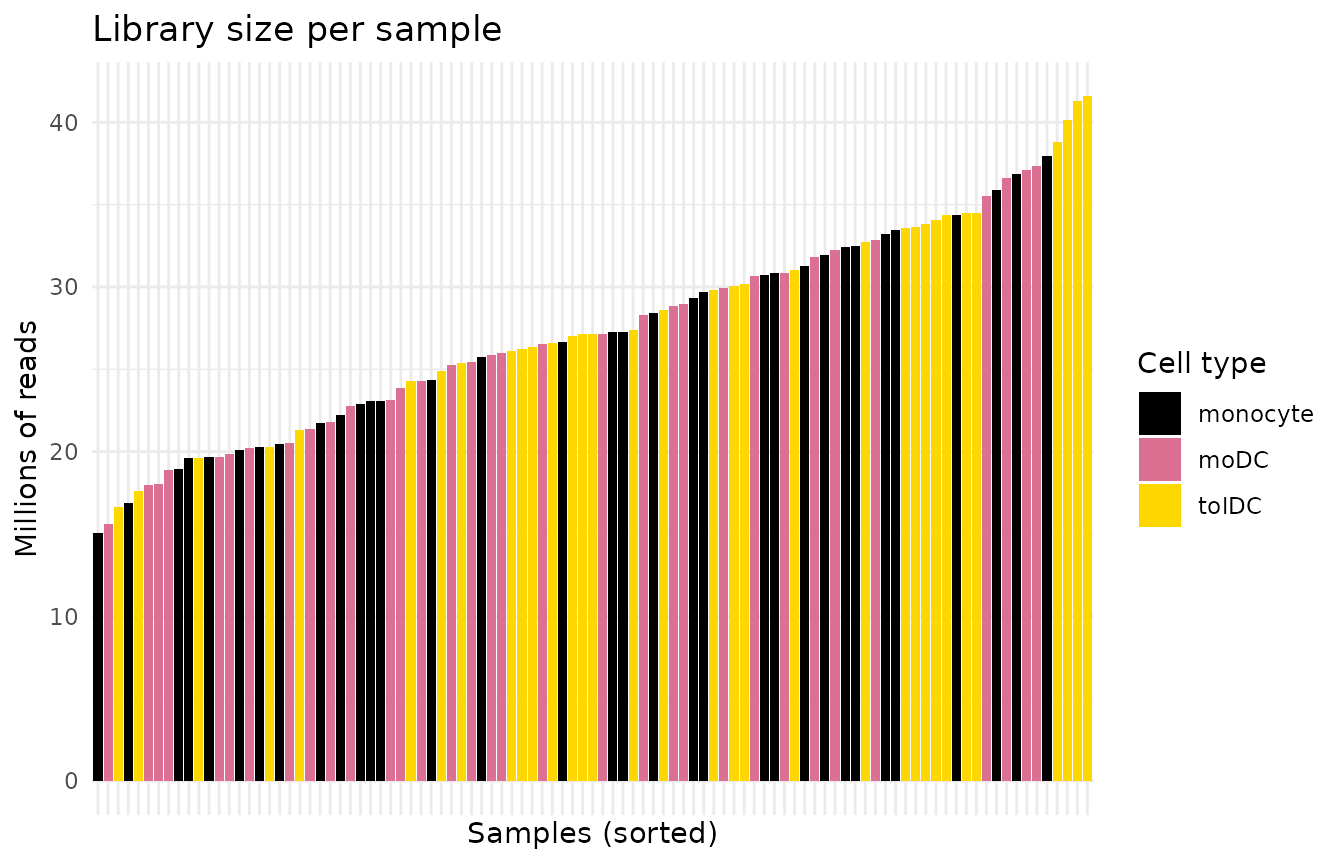

Does sequencing depth vary much in our data?

tibble(sample_ID = colnames(dds),
       million_reads  = colSums(counts(dds)) / 1e6,
       Cell_type = dds$Cell_type) %>%
  ggplot(aes(x = reorder(sample_ID, million_reads), y = million_reads, fill = Cell_type)) +
  geom_col() +
  scale_fill_manual(values = cell_color) +
  labs(x = "Samples (sorted)", y = "Millions of reads", fill = "Cell type",
       title = "Library size per sample") +
  theme_minimal() +
  theme(axis.text.x = element_blank())

Yes: some samples have several times more reads than others. Without normalizing, we would be comparing sequencing depth, not biology.

7.2 How does DESeq2 normalize?

DESeq2 uses the median of ratios method. In simple terms:

For each gene it calculates a reference “average” sample (the geometric mean across all samples).
It divides each sample by that reference, gene by gene.
The median of those ratios is the sample’s normalization factor. Using the median prevents a few highly expressed genes from distorting the result.

With tximport data there is an extra detail: besides depth, the transcript length, which can vary between samples, is also corrected. That is why, instead of a single number per sample (sizeFactors), DESeq2 stores a table of gene × sample factors (normalizationFactors).

dds <- estimateSizeFactors(dds)
sizeFactors(dds)                    # NULL: not used with tximport
#> NULL
normalizationFactors(dds)[1:4, 1:4] # gene x sample factors
#>            QR011_0   QR011_1   QR011_3   QR013_0
#> A1BG     0.7292214 0.7590954 0.9675822 0.8422480
#> A1BG-AS1 0.7301966 0.7591523 0.9701181 0.8427474
#> A2M      0.7285477 0.7554575 0.9710304 0.9000925
#> A2M-AS1  0.7302545 0.7590955 0.9703467 0.8427377

With the factors calculated, we can now obtain the normalized counts:

norm_counts <- counts(dds, normalized = TRUE)
norm_counts[1:4, 1:4]
#>            QR011_0    QR011_1    QR011_3   QR013_0
#> A1BG     245.46729   176.5259  414.43509 193.52969
#> A1BG-AS1  95.86459   101.4289  212.34528  91.36783
#> A2M       21.96150 36769.7731 3810.38550  33.32991
#> A2M-AS1   15.06324    18.4430   12.36671  28.47861

Important: normalized counts are for comparing and plotting. For the differential expression analysis (DESeq()), the raw counts are always used, because DESeq2 applies the normalization internally. Never pass it already normalized counts.

8. Step 5: variance stabilizing transformation (VST)

8.1 Why another transformation?

Normalized counts still have a problem: highly expressed genes vary much more than lowly expressed ones, just because of their scale. If we ran a PCA or a heatmap with them, a few very abundant genes would dominate the result.

The solution is to use a logarithmic scale. But log2(x + 1) exaggerates the noise of genes with few counts. The VST (variance stabilizing transformation) is a “smart” logarithm that fixes this.

vsd <- vst(dds, blind = FALSE)
assay(vsd)[1:4, 1:4] # values on an approximately log2 scale
#>           QR011_0   QR011_1   QR011_3  QR013_0
#> A1BG     8.335329  7.980506  8.947756 8.076851
#> A1BG-AS1 7.396740  7.446462  8.176147 7.355095
#> A2M      6.400719 15.169477 11.926583 6.626424
#> A2M-AS1  6.229470  6.317794  6.150936 6.536546

blind = TRUE or blind = FALSE? With blind = FALSE, the transformation knows the design (~ Cell_type + Group) and does not confuse expected biological differences with noise. This is recommended for plots and downstream analyses. Use blind = TRUE if you want an exploration that knows nothing about the design, for example, for quality control.

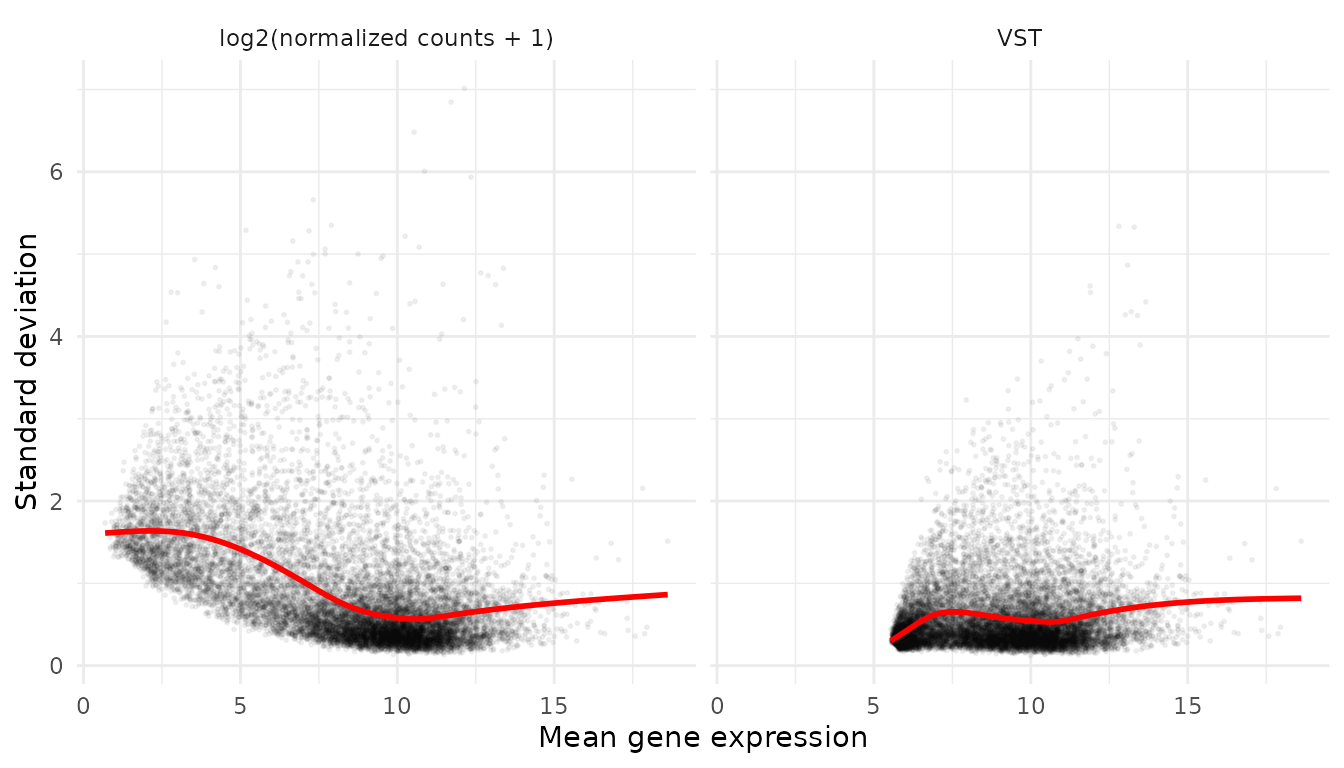

Let us check it: the plot shows, for each gene, its mean expression (x axis) against its standard deviation (y axis). Ideally the line is flat: variability should not depend on how much the gene is expressed.

mean_vs_sd <- function(mat, label) {
  tibble(mean = rowMeans(mat), sd = apply(mat, 1, sd), scale = label)
}

bind_rows(mean_vs_sd(log2(norm_counts + 1), "log2(normalized counts + 1)"),
          mean_vs_sd(assay(vsd), "VST")) %>%
  ggplot(aes(x = mean, y = sd)) +
  geom_point(alpha = 0.05, size = 0.4) +
  geom_smooth(color = "red", se = FALSE) +
  facet_wrap(~ scale) +
  labs(x = "Mean gene expression", y = "Standard deviation") +
  theme_minimal()

With log2(x + 1), lowly expressed genes (left) have inflated variability. With VST the red line is flatter.

8.2 Did the normalization work?

If everything went well, the distributions of all samples should be aligned. Each box is a sample:

to_long <- function(mat, stage) {
  as.data.frame(mat) %>%
    rownames_to_column("gene") %>%
    pivot_longer(-gene, names_to = "sample_ID", values_to = "value") %>%
    mutate(stage = stage)
}

bind_rows(to_long(log2(counts(dds) + 1), "1. log2(raw counts + 1)"),
          to_long(log2(norm_counts + 1), "2. log2(normalized counts + 1)"),
          to_long(assay(vsd), "3. VST")) %>%
  left_join(metadata_cleaned, by = "sample_ID") %>%
  ggplot(aes(x = sample_ID, y = value, fill = Cell_type)) +
  geom_boxplot(outlier.shape = NA, linewidth = 0.2, color = "grey50") + # grey outline: visible on black
  facet_wrap(~ stage, ncol = 1, scales = "free_y") +
  scale_fill_manual(values = cell_color) +
  labs(x = "Samples", y = "Expression", fill = "Cell type") +
  theme_minimal() +
  theme(axis.text.x = element_blank())

In panel 1 the boxes go up and down from one sample to the next; in panels 2 and 3 they are at the same height. The normalization worked.

9. Step 6: explore individual genes

9.1 Do the data make biological sense?

Before looking for something new, check something you already know. If the data are good, the marker genes of each cell type should behave as expected:

CD14: classic monocyte marker.
CD1A and CD209 (DC-SIGN): dendritic cell markers.

First we prepare a long-format table with the VST expression and the metadata. This is the format that ggplot2 prefers:

expr_long <- to_long(assay(vsd), "VST") %>%
  dplyr::select(gene, sample_ID, expression = value) %>%
  left_join(metadata_cleaned, by = "sample_ID")
head(expr_long)
#> # A tibble: 6 × 17
#>   gene  sample_ID expression Group GC    Dose  Dose_category Age   Cell_type
#>   <chr> <chr>          <dbl> <fct> <fct> <fct> <fct>         <fct> <fct>
#> 1 A1BG  QR011_0         8.34 Ctrl  No    0     0             25    monocyte
#> 2 A1BG  QR011_1         7.98 Ctrl  No    0     0             25    moDC
#> 3 A1BG  QR011_3         8.95 Ctrl  No    0     0             25    tolDC
#> 4 A1BG  QR013_0         8.08 Ctrl  No    0     0             23    monocyte
#> 5 A1BG  QR013_1         8.25 Ctrl  No    0     0             23    moDC
#> 6 A1BG  QR013_3         8.18 Ctrl  No    0     0             23    tolDC
#> # ℹ 8 more variables: Group_age <fct>, Nephritis <fct>, Other_tx <fct>,
#> #   Sledai_score <fct>, Sledai_group <fct>, SLEDAI_Md <fct>,
#> #   SLEDAI_category <fct>, Volunteer_ID <fct>

expr_long %>%
  filter(gene %in% c("CD14", "CD1A", "CD209")) %>%
  ggplot(aes(x = Cell_type, y = expression, fill = Cell_type)) +
  geom_boxplot(outlier.shape = NA, alpha = 0.8, color = "grey50") +
  geom_jitter(width = 0.15, size = 0.8, alpha = 0.6, color = "grey50") +
  facet_wrap(~ gene, scales = "free_y") +
  scale_fill_manual(values = cell_color) +
  labs(x = NULL, y = "Expression (VST)", title = "Cell type marker genes") +
  theme_minimal() +
  theme(legend.position = "none")

CD14 is high in monocytes and CD1A in moDC, just as we expected. The data make sense.

9.2 The interferon signature in lupus

Now for the question of the study. Let us look at four interferon-stimulated genes (ISGs) reported in the article: IFI27, IFI44L, USP18, and IFI6.

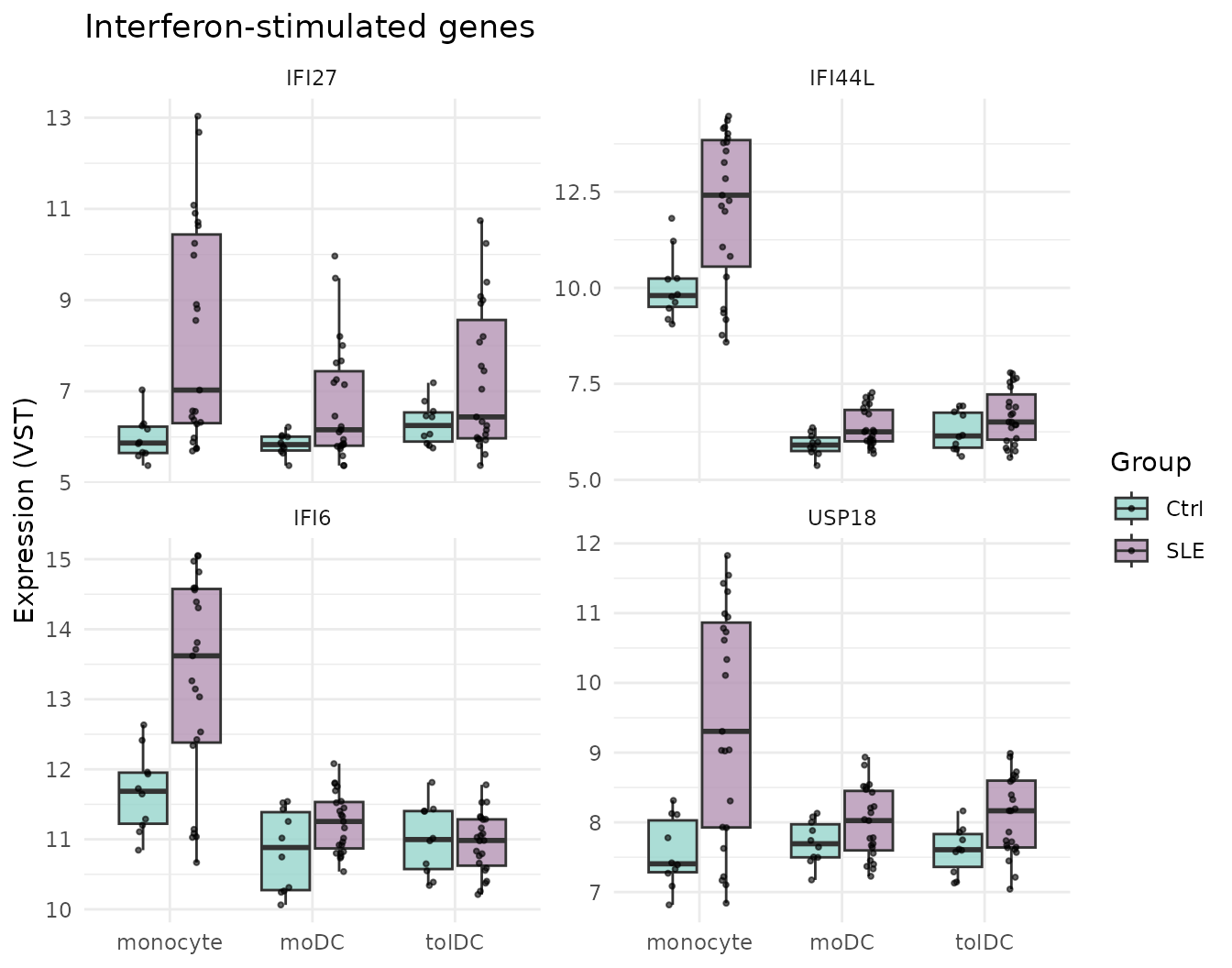

isg <- c("IFI27", "IFI44L", "USP18", "IFI6")

expr_long %>%
  filter(gene %in% isg) %>%
  ggplot(aes(x = Cell_type, y = expression, fill = Group)) +
  geom_boxplot(outlier.shape = NA, alpha = 0.8) +
  geom_point(position = position_jitterdodge(jitter.width = 0.15), size = 0.7, alpha = 0.6) +
  facet_wrap(~ gene, scales = "free_y") +
  scale_fill_manual(values = group_color) +
  labs(x = NULL, y = "Expression (VST)", fill = "Group",
       title = "Interferon-stimulated genes") +
  theme_minimal()

What do you observe? In monocytes, patients with lupus (lilac) express these genes more than controls (teal). Notice also that the patients’ points are widely spread: some patients have very high values and others have values similar to controls. In moDC and tolDC the difference is much smaller: when differentiating in vitro, away from the inflammatory environment of the body, the cells partly “forget” the interferon signal.

This is not yet a statistical test. A plot suggests differences; to assert them, a differential expression analysis (for example, with DESeq()) is needed, which takes into account variability and multiple comparisons.

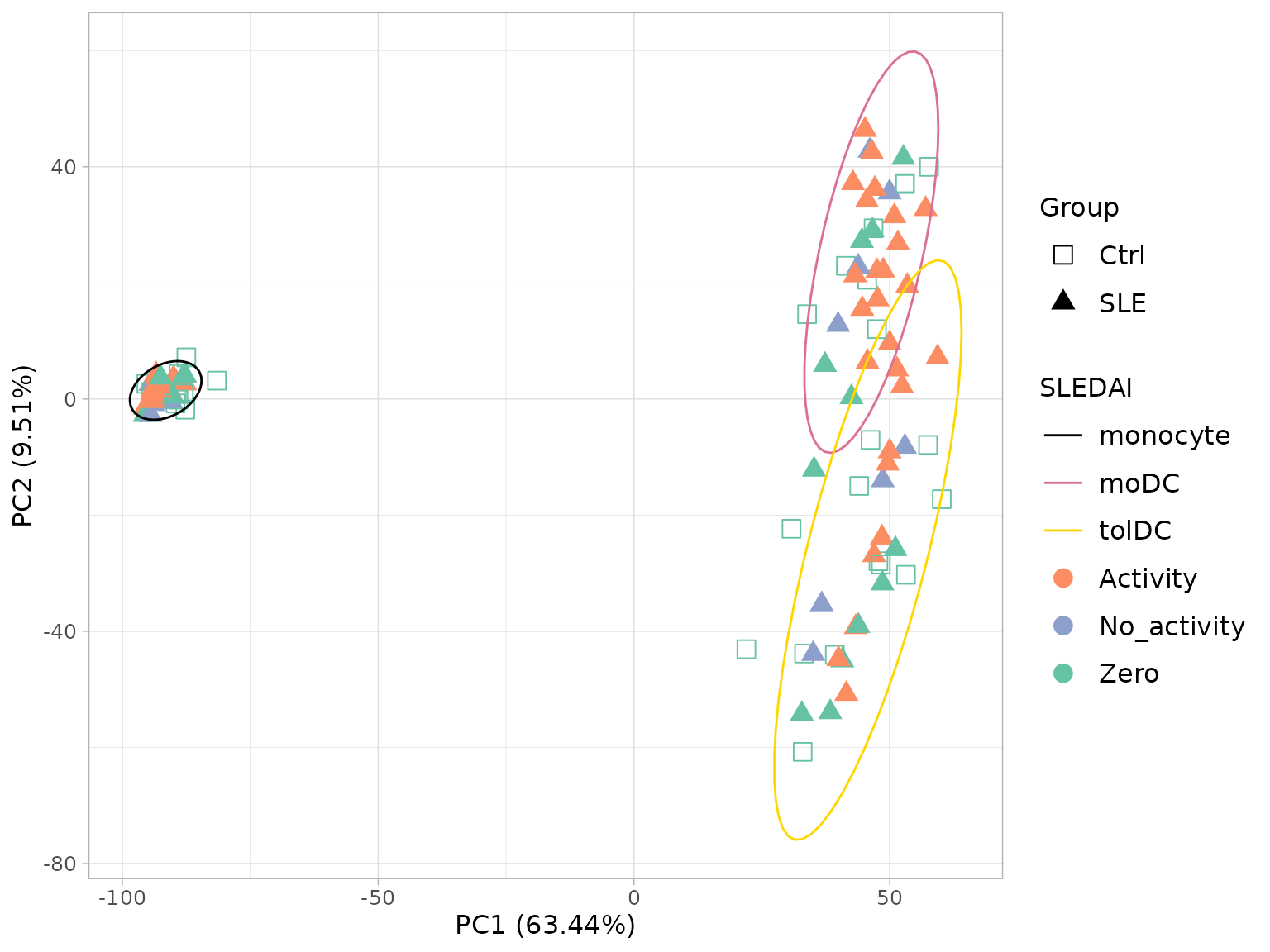

Challenge 2. The article reports that in tolDC from patients with lupus, IL10RA, the receptor of the anti-inflammatory signal IL-10, decreases. Plot IL10RA and IRF4 by cell type and group. Do you see any difference?

Show solution

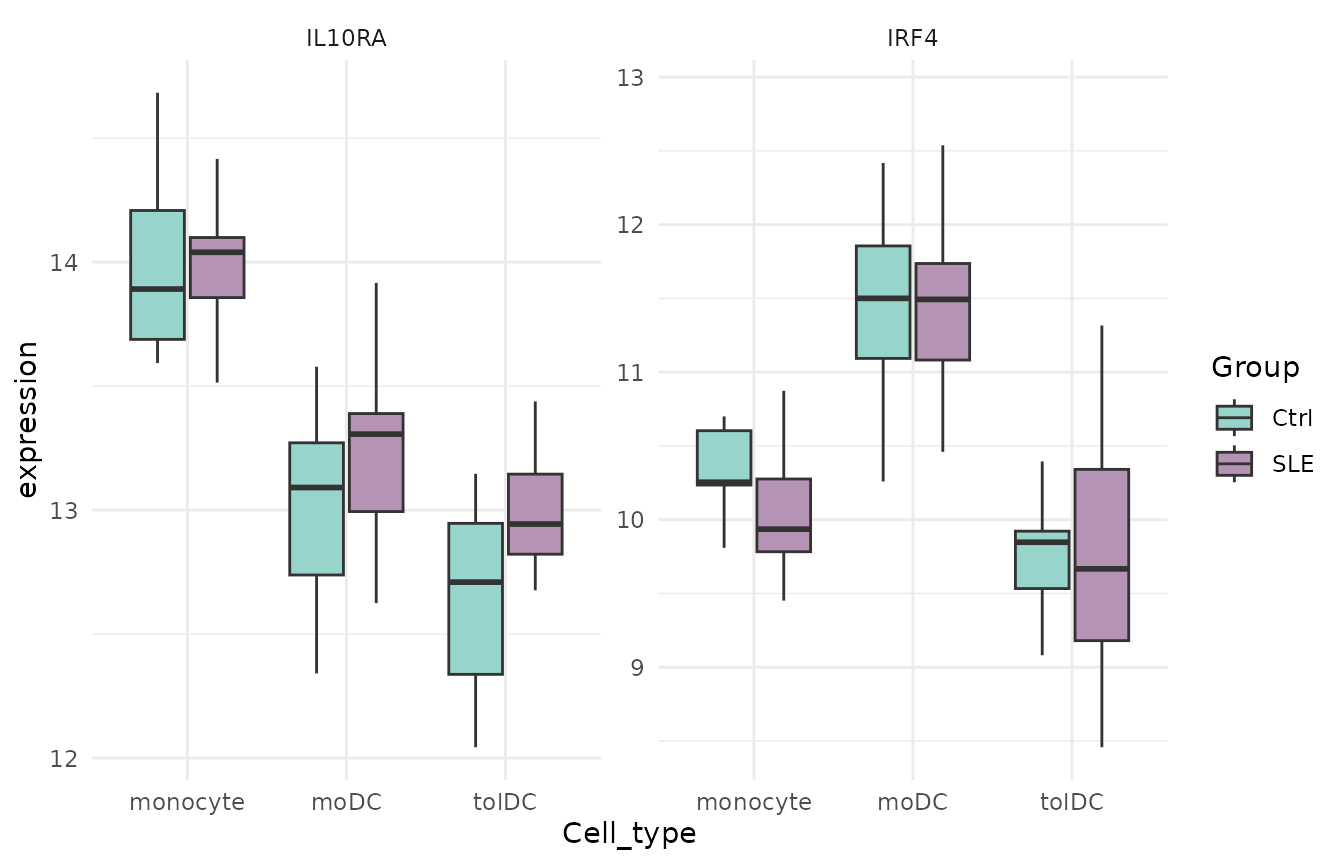

expr_long %>%
  filter(gene %in% c("IL10RA", "IRF4")) %>%
  ggplot(aes(x = Cell_type, y = expression, fill = Group)) +
  geom_boxplot(outlier.shape = NA) +
  facet_wrap(~ gene, scales = "free_y") +
  scale_fill_manual(values = group_color) +
  theme_minimal()

10. Step 7: heatmap with z-scores

A heatmap shows many genes and samples at once using colors. But each gene has its own scale (one may hover around 6 and another around 15), so we first standardize them with the z-score:

$z = \frac{\text{expression} - \text{gene mean}}{\text{gene standard deviation}}$

A z-score of +2 means “this gene is 2 standard deviations above its own average in this sample”. This way all genes end up on the same scale.

Calculate the z-scores on the transformed (VST) data, never on the raw counts. Raw counts are not corrected for sequencing depth, so the heatmap would show library size instead of biology.

vsd_mat <- assay(vsd)
vsd_mat <- vsd_mat[apply(vsd_mat, 1, var) > 0, ] # remove genes with no variation
zscore_mat <- t(scale(t(vsd_mat)))               # scale() works by columns: we transpose
dim(zscore_mat)
#> [1] 13596    99
round(zscore_mat[1:4, 1:4], 2)
#>          QR011_0 QR011_1 QR011_3 QR013_0
#> A1BG        1.02    0.15    2.51    0.39
#> A1BG-AS1   -0.38   -0.26    1.48   -0.48
#> A2M        -1.35    1.12    0.20   -1.28
#> A2M-AS1    -0.28    0.01   -0.54    0.72

We draw the heatmap of a set of ISGs, with the samples grouped by cell type and group:

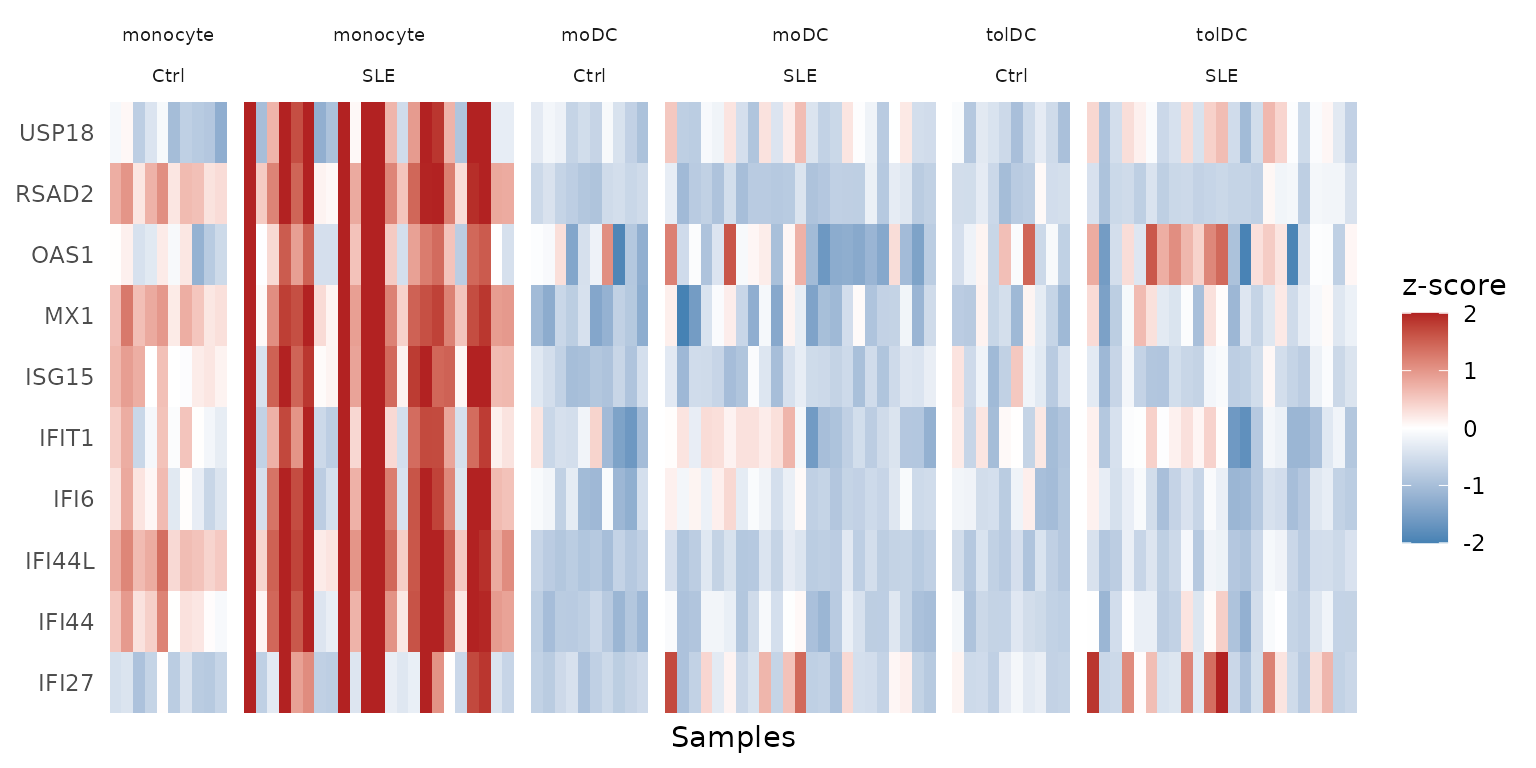

isg_extended <- c("IFI27", "IFI44L", "IFI44", "USP18", "IFI6", "ISG15", "MX1", "RSAD2", "IFIT1", "OAS1")

as.data.frame(zscore_mat[isg_extended, ]) %>%
  rownames_to_column("gene") %>%
  pivot_longer(-gene, names_to = "sample_ID", values_to = "z") %>%
  left_join(metadata_cleaned, by = "sample_ID") %>%
  mutate(z = pmin(pmax(z, -2), 2)) %>% # limit to [-2, 2] so extremes do not dominate the color
  ggplot(aes(x = sample_ID, y = gene, fill = z)) +
  geom_tile() +
  facet_grid(~ Cell_type + Group, scales = "free_x", space = "free_x") +
  scale_fill_gradient2(low = "steelblue", mid = "white", high = "firebrick") +
  labs(x = "Samples", y = NULL, fill = "z-score") +
  theme_minimal() +
  theme(axis.text.x = element_blank(), panel.grid = element_blank(),
        strip.text = element_text(size = 7))

The red columns in monocyte / SLE are the interferon signature: the 10 genes go up together in the same patients. It is also clear that not all patients have it; we will return to this in the PCA.

11. Step 8: principal component analysis (PCA)

11.1 What is a PCA?

Each sample is described by thousands of genes, and we cannot plot thousands of dimensions. PCA looks for the directions in which the samples differ the most and summarizes them into a few axes:

PC1 is the axis that captures most of the variation.
PC2 captures most of the remaining variation, and so on.

It is like taking a photo of a 3D object from the angle that best shows its shape. If two samples are close together in the PCA, their expression profiles are similar.

11.2 Compute the PCA

We use all the genes that passed the filter. Since we will repeat the calculation, we store it in a function:

calc_pca <- function(vsd_obj) {
  pca <- prcomp(t(assay(vsd_obj))) # prcomp() wants samples in rows, genes in columns
  list(
    data     = cbind(as.data.frame(pca$x[, 1:2]), as.data.frame(colData(vsd_obj))),
    variance = round(100 * pca$sdev^2 / sum(pca$sdev^2), 2) # % of variance per PC
  )
}

pca_all <- calc_pca(vsd)
head(pca_all$variance)
#> [1] 63.44  9.51  3.71  2.62  2.05  1.94

How much information does each component hold? We see it in a scree plot:

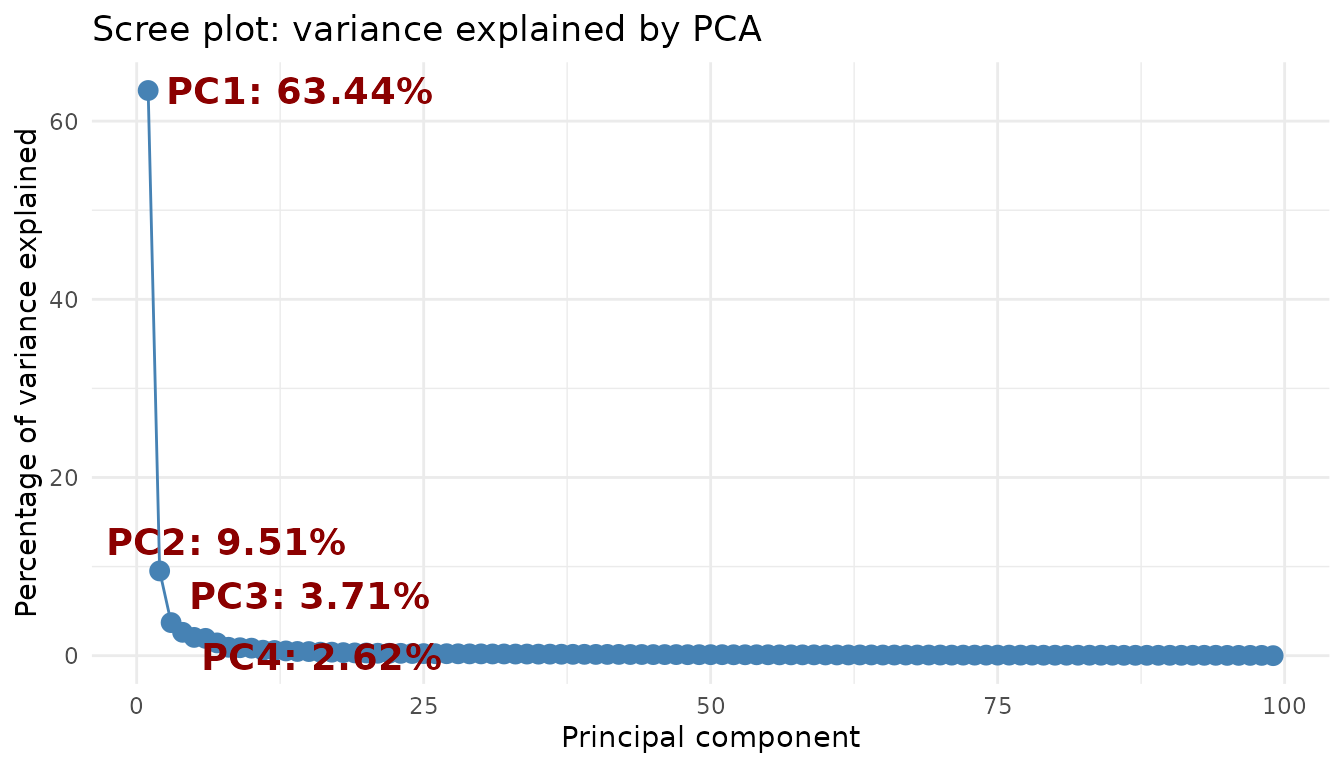

scree_df <- data.frame(
  component = seq_along(pca_all$variance),
  variance  = pca_all$variance,
  label     = paste0("PC", seq_along(pca_all$variance), ": ", pca_all$variance, "%")
)

ggplot(scree_df, aes(x = component, y = variance)) +
  geom_point(color = "steelblue", size = 3) +
  geom_line(color = "steelblue") +
  geom_text_repel(data = scree_df[1:4, ], aes(label = label), # labels only for PC1-PC4
                  size = 5, box.padding = unit(0.35, "lines"),
                  point.padding = unit(0.3, "lines"),
                  color = "darkred", fontface = "bold") +
  labs(title = "Scree plot: variance explained by PCA",
       x = "Principal component",
       y = "Percentage of variance explained") +
  theme_minimal()

PC1 and PC2 together explain almost three quarters of the variation; from PC3 on, each component contributes very little. Plotting the first two will be enough.

11.3 Plot the PCA

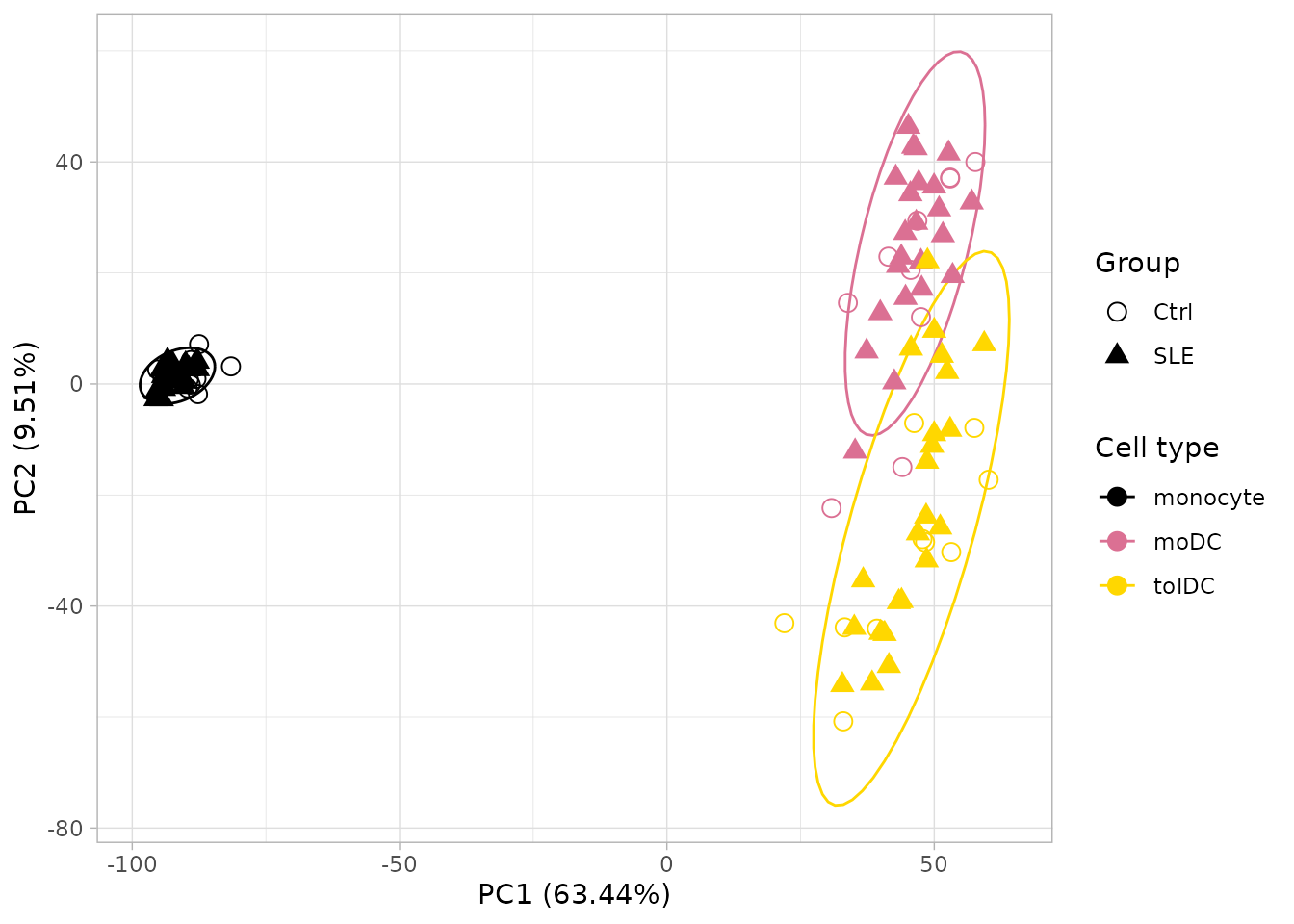

ggplot(pca_all$data, aes(x = PC1, y = PC2, color = Cell_type)) +
  stat_ellipse() +
  geom_point(aes(shape = Group), size = 3) +
  scale_color_manual(values = cell_color) +
  scale_shape_manual(values = c(Ctrl = 1, SLE = 17)) +
  labs(x = paste0("PC1 (", pca_all$variance[1], "%)"),
       y = paste0("PC2 (", pca_all$variance[2], "%)"),
       color = "Cell type", shape = "Group") +
  theme_light()

What does it tell us?

PC1 separates monocytes from dendritic cells: differentiation completely changes the expression profile.
PC2 separates moDC from tolDC.
Controls and patients mix together within each cell type.

Conclusion: cell type is, by far, the largest source of variation. The effect of lupus is more subtle and gets “masked”.

All genes or only the most variable ones? Many tutorials compute the PCA with only the 500 most variable genes. That choice changes the result: with 500 genes, PC1 explains about 80% of the variation; with all of them, about 63%. Here we use all genes. Always report how many genes you used.

11.4 Looking within a single cell type

To see the effect of lupus we have to remove the variation due to cell type. Let us repeat the PCA with monocytes only, which is where we saw the interferon signature:

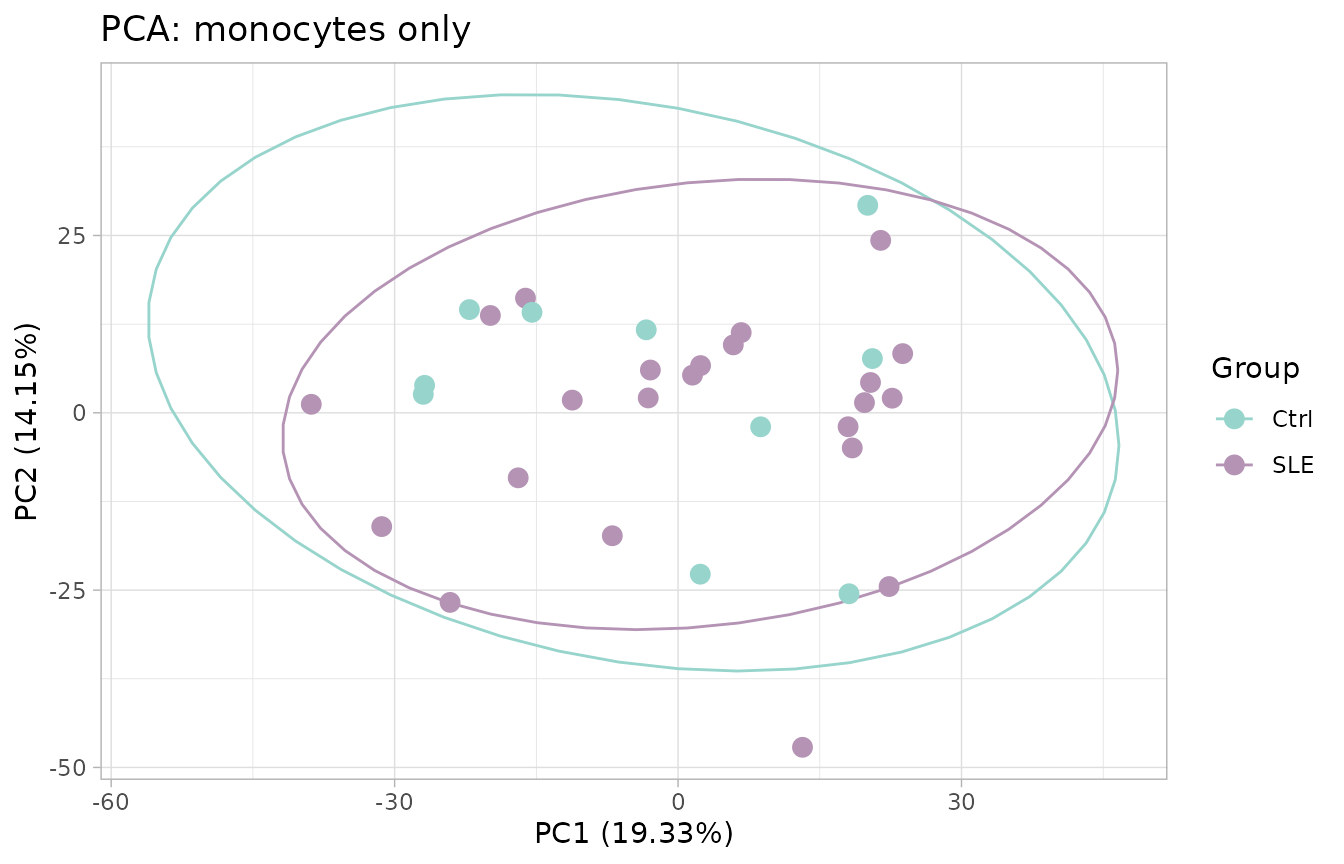

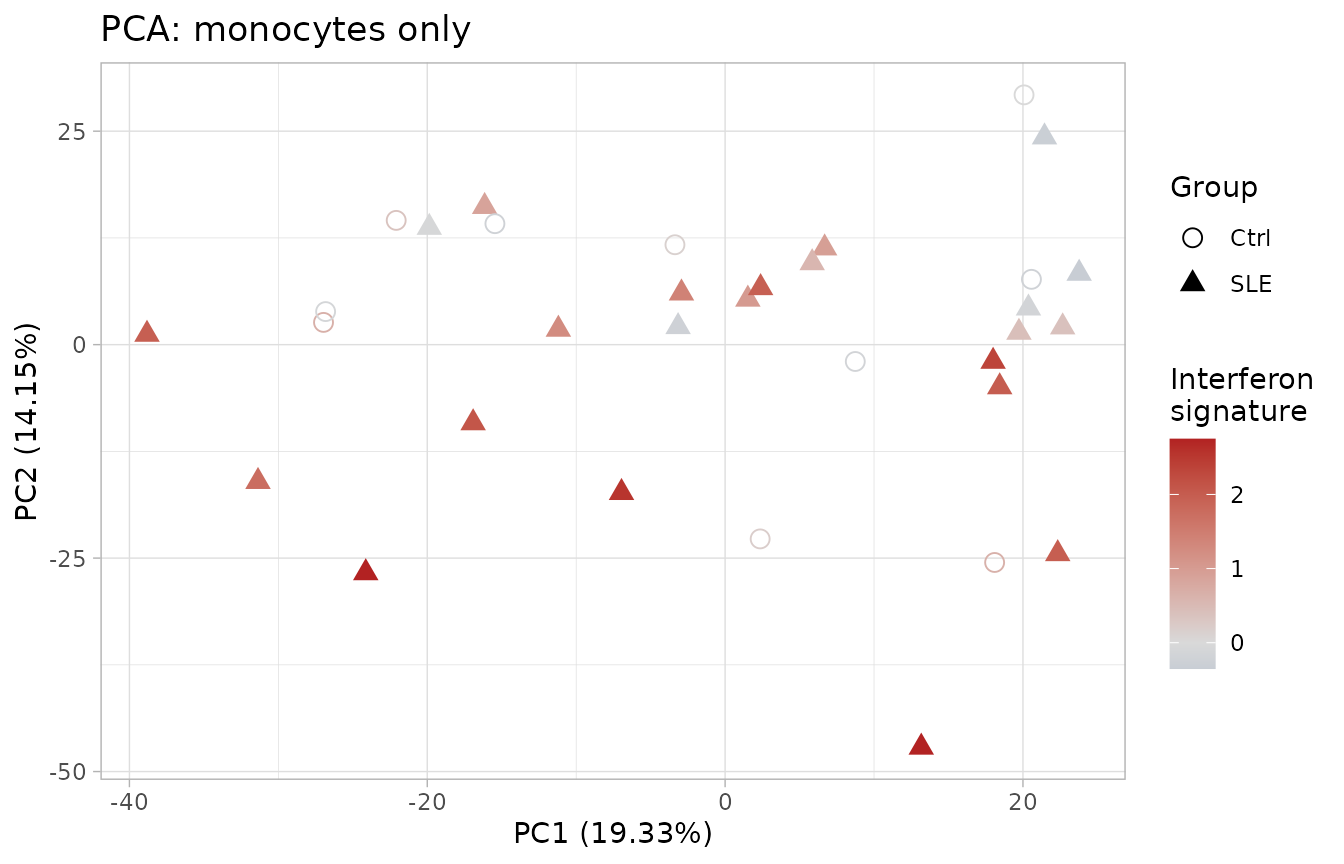

pca_mono <- calc_pca(vsd[, vsd$Cell_type == "monocyte"])

ggplot(pca_mono$data, aes(x = PC1, y = PC2, color = Group)) +
  stat_ellipse() +
  geom_point(size = 3) +
  scale_color_manual(values = group_color) +
  labs(x = paste0("PC1 (", pca_mono$variance[1], "%)"),
       y = paste0("PC2 (", pca_mono$variance[2], "%)"),
       color = "Group", title = "PCA: monocytes only") +
  theme_light()

Surprise: even so, controls and patients mix together. Does that mean there are no differences? No. Remember that in section 9.2 only some of the patients had an elevated interferon signature. Let us check it by summarizing the 10 ISGs from the heatmap into a single number per sample, the interferon signature score (the average of their z-scores):

pca_mono$data$ifn_score <- colMeans(zscore_mat[isg_extended, rownames(pca_mono$data)])

ggplot(pca_mono$data, aes(x = PC1, y = PC2, color = ifn_score, shape = Group)) +
  geom_point(size = 3) +
  scale_color_gradient2(low = "steelblue", mid = "grey85", high = "firebrick") +
  scale_shape_manual(values = c(Ctrl = 1, SLE = 17)) +
  labs(x = paste0("PC1 (", pca_mono$variance[1], "%)"),
       y = paste0("PC2 (", pca_mono$variance[2], "%)"),
       color = "Interferon\nsignature", shape = "Group", title = "PCA: monocytes only") +
  theme_light()

Now a pattern does appear! PC2 is related to the interferon signature: patients with the highest signature (red) tend to sit at the bottom. We learned three things:

PCA shows the largest sources of variation, which do not always coincide with the groups we are interested in.
Lupus is heterogeneous: some patients have a strong interferon signature and others look like controls.
That two groups do not separate in a PCA does not mean they have no different genes.

11.5 Challenges: what other variables explain the variation?

PCA lets you ask the data which variables are associated with differences between samples. Coloring the points by different variables is the fastest way to do it. Now it is your turn.

Challenge 3. Disease activity. Color the PCA of all samples (pca_all) by SLEDAI_category (lupus activity according to the SLEDAI index) and draw an ellipse for each cell type. Do samples from patients with active disease separate from the others?

Hints:

SLEDAI_category is already in pca_all$data, because it comes from the metadata.
Color the points with aes(color = SLEDAI_category) and add the ellipses with stat_ellipse(aes(color = Cell_type)).

Show solution

# Colors: cell types (ellipses) and activity (points)
sledai_colors <- c(
  cell_color,
  "Activity"    = "#FC8D62",
  "No_activity" = "#8DA0CB",
  "Zero"        = "#66C2A5"
)

ggplot(pca_all$data, aes(x = PC1, y = PC2, color = SLEDAI_category)) +
  geom_point(aes(shape = Group), size = 3.5) +
  stat_ellipse(aes(color = Cell_type)) +
  scale_shape_manual(values = c(Ctrl = 0, SLE = 17)) +
  scale_color_manual(values = sledai_colors, breaks = names(sledai_colors)) +
  labs(x = sprintf("PC1 (%.2f%%)", pca_all$variance[1]),
       y = sprintf("PC2 (%.2f%%)", pca_all$variance[2]),
       color = "SLEDAI",
       shape = "Group") +
  theme_light() +
  theme(plot.background = element_rect(fill = "white"),
        text = element_text(size = 12),
        axis.title = element_text(size = 12),
        legend.title = element_text(size = 12),
        legend.text = element_text(size = 12),
        legend.key.size = unit(1.5, "lines"))

Within each cell type, the colors appear mixed: disease activity does not separate the samples as much as cell type does. Notice also that controls appear as Zero, because they do not have lupus.

Challenge 4. Sample collection date (batch effect). The volunteers were recruited over nine months. If something technical changed on each date (the reagent batch, the person who processed the cells, the sequencing run), samples may resemble each other because of the date they were collected rather than because of their biology. This is called a batch effect.

Color the PCA of all samples (pca_all) by sample collection date (Time_of_recruitment) and draw an ellipse for each cell type.

Hints:

The date is in volunteer_info (one row per volunteer) and the PCA has one row per sample. Join them with left_join() using the key column Volunteer_ID.
Color the points by date with aes(color = ...) and add the ellipses with stat_ellipse(aes(color = Cell_type)).

Show solution

# 1. Sample collection date for each volunteer, as text ("June 2022")
recruitment <- volunteer_info %>%
  dplyr::select(Volunteer_ID, Time_of_recruitment) %>%
  mutate(Date_sample = paste(month.name[as.integer(format(Time_of_recruitment, "%m"))],
                             format(Time_of_recruitment, "%Y")))

# 2. Join the date to each PCA sample
pca_all_date <- left_join(pca_all$data, recruitment, by = "Volunteer_ID")

# 3. Colors: cell types (ellipses) and dates (points)
date_colors <- c(
  cell_color,
  "June 2022"      = "#66C2A5",
  "July 2022"      = "#8DA0CB",
  "August 2022"    = "#FC8D62",
  "September 2022" = "#E78AC3",
  "October 2022"   = "#A6D854",
  "December 2022"  = "#FFD92F",
  "January 2023"   = "#E5C494",
  "February 2023"  = "#B3B3B3"
)

# 4. Plot
p_date <- ggplot(pca_all_date, aes(x = PC1, y = PC2, color = Date_sample)) +
  geom_point(aes(shape = Group), size = 3.5) +
  stat_ellipse(aes(color = Cell_type)) +
  scale_shape_manual(values = c(Ctrl = 0, SLE = 17)) +
  scale_color_manual(values = date_colors, breaks = names(date_colors)) +
  labs(x = sprintf("PC1 (%.2f%%)", pca_all$variance[1]),
       y = sprintf("PC2 (%.2f%%)", pca_all$variance[2]),
       color = "Sample date",
       shape = "Group") +
  theme_light() +
  theme(plot.background = element_rect(fill = "white"),
        text = element_text(size = 12),
        axis.title = element_text(size = 12),
        legend.title = element_text(size = 12),
        legend.text = element_text(size = 12),
        legend.key.size = unit(1.5, "lines"))

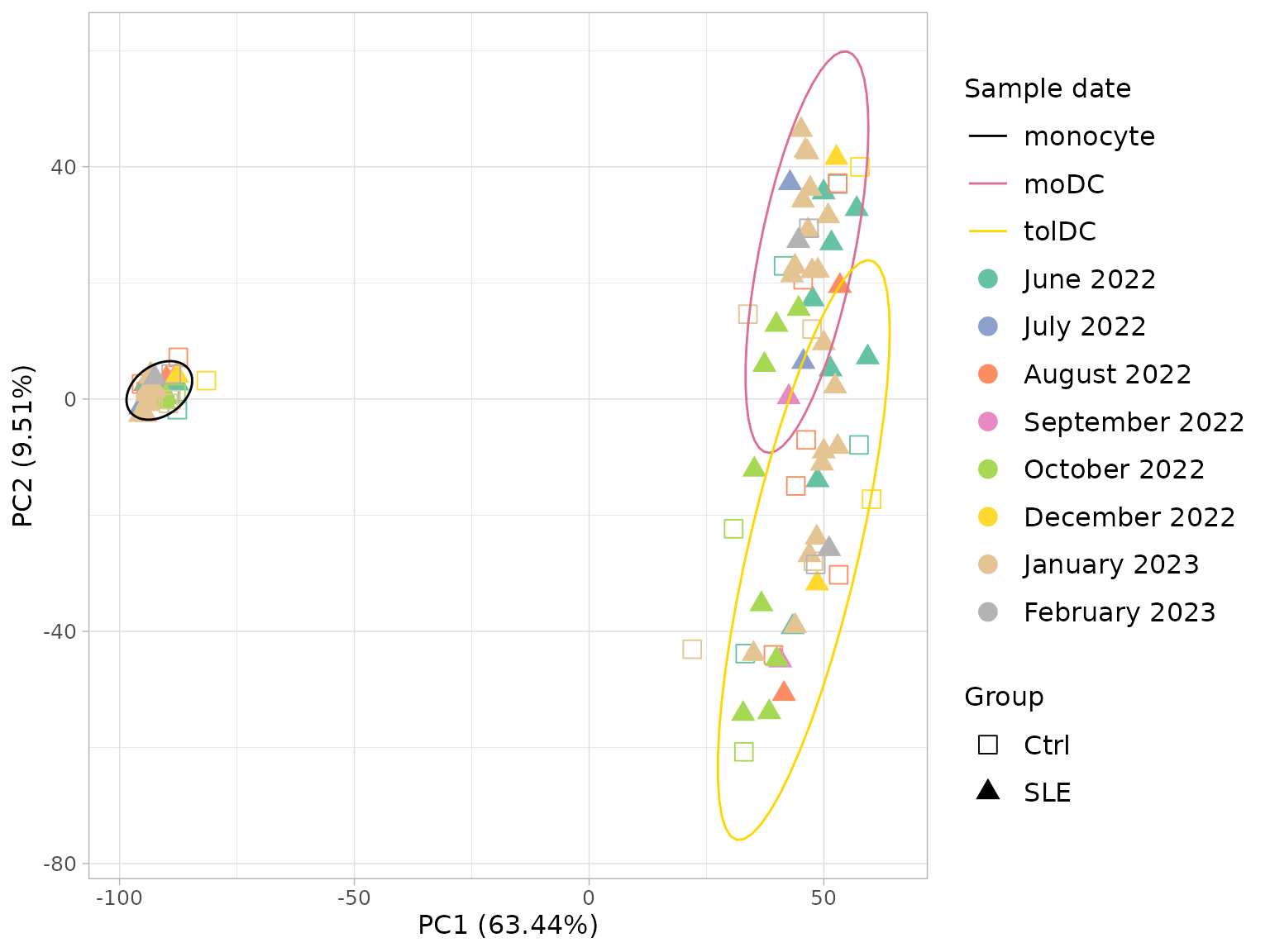

p_date

When planning a study, try to recruit controls and patients on the same dates. That way batch and group are not confounded.

11.6 To finish: the article figure

Let us bring the three PCAs together in a single panel, as they appear in the original article. We already have the date one (p_date, from Challenge 4); we build the other two in the same style:

A. Cell type, the PCA from section 11.3.
C. Disease activity. We use the SLEDAI column of volunteer_info, coded as follows: 1 = active (SLEDAI ≥ 6 points), 0 = no activity or low activity (0–5 points), and NA = controls.

# Common style for the panels
pca_theme <- theme_light() +
  theme(plot.background = element_rect(fill = "white"),
        text = element_text(size = 12),
        axis.title = element_text(size = 12),
        legend.title = element_text(size = 12),
        legend.text = element_text(size = 12),
        legend.key.size = unit(1.5, "lines"))

pca_labels <- labs(x = sprintf("PC1 (%.2f%%)", pca_all$variance[1]),
                   y = sprintf("PC2 (%.2f%%)", pca_all$variance[2]))

# A. Cell type
p_cell <- ggplot(pca_all$data, aes(x = PC1, y = PC2, color = Cell_type)) +
  geom_point(aes(shape = Group), size = 3.5) +
  stat_ellipse() +
  scale_shape_manual(values = c(Ctrl = 0, SLE = 17)) +
  scale_color_manual(values = cell_color) +
  pca_labels +
  labs(color = "Cell type", shape = "Group") +
  pca_theme

# C. SLEDAI activity (1 / 0 / NA), joined from volunteer_info
pca_all_sledai <- pca_all$data %>%
  left_join(dplyr::select(volunteer_info, Volunteer_ID, SLEDAI), by = "Volunteer_ID") %>%
  mutate(SLEDAI = ifelse(is.na(SLEDAI), "NA", as.character(SLEDAI)))

sledai_article_colors <- c(cell_color, "1" = "#FC8D62", "0" = "#8DA0CB", "NA" = "#66C2A5")

p_sledai <- ggplot(pca_all_sledai, aes(x = PC1, y = PC2, color = SLEDAI)) +
  geom_point(aes(shape = Group), size = 3.5) +
  stat_ellipse(aes(color = Cell_type)) +
  scale_shape_manual(values = c(Ctrl = 0, SLE = 17)) +
  scale_color_manual(values = sledai_article_colors, breaks = names(sledai_article_colors)) +
  pca_labels +
  labs(color = "SLEDAI", shape = "Group") +
  guides(shape = guide_legend(order = 1)) + # "Group" first, as in A and B
  pca_theme

# Panel A, B, C
figure_s2 <- plot_grid(p_cell, p_date, p_sledai,
                       labels = c("A", "B", "C"), label_size = 18,
                       nrow = 1, align = "h", axis = "tb")
figure_s2

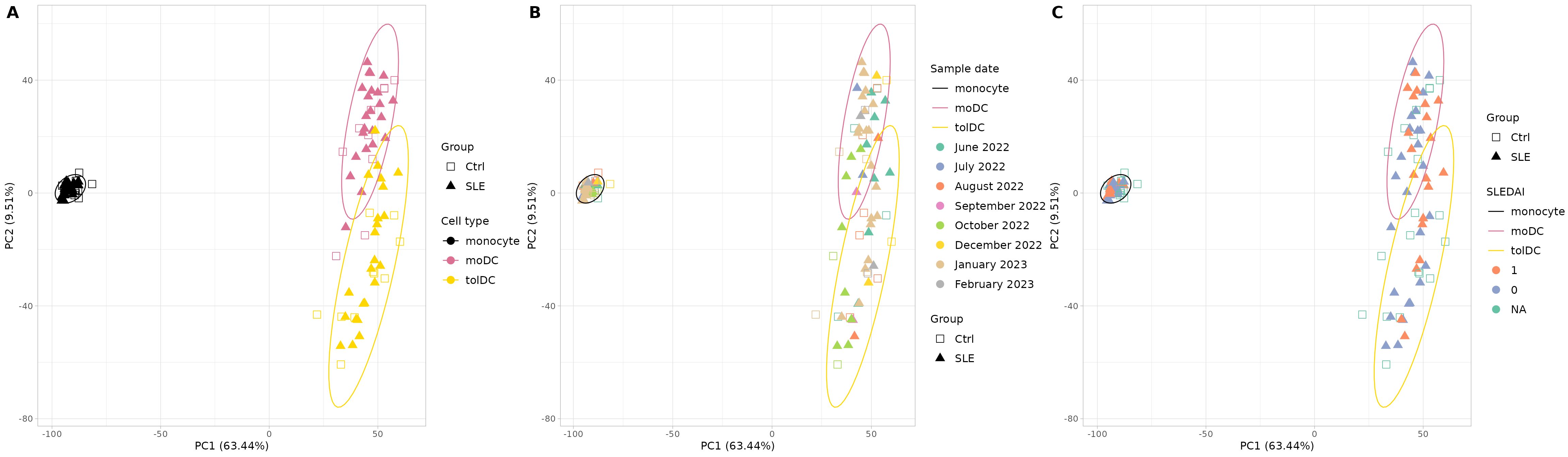

Supplementary Figure S2. Principal component analysis (PCA) of the normalized RNA-seq counts. (A) PCA colored by cell type (monocytes, moDC, and tolDC) and with shape according to group (SLE and Ctrl); it shows a clear separation, driven mainly by cell identity. (B) PCA with the sample collection dates, to assess possible batch effects between collections; no major clustering by date is observed. (C) PCA colored by disease activity (SLEDAI): 1 indicates activity (SLEDAI score ≥ 6), 0 indicates no activity or low activity (0–5 points), and controls are marked as NA. PC1 and PC2 explain 63.44% and 9.51% of the total variance, respectively. Each point represents a sample. Abbreviations: SLE, systemic lupus erythematosus; Ctrl, healthy control; mo, monocytes; moDC, monocyte-derived dendritic cells; tolDC, tolerogenic dendritic cells. The data for this figure can be found in Supplementary Table S1 and Dataset S2.

The original supplementary figure can be found in the file Data Sheet 1.docx of the supplementary material of the article.

To save the figure in high resolution:

ggsave("Figure_S2_PCA.png", figure_s2, width = 24, height = 7, dpi = 300)

12. Save your results (optional)

saveRDS(dds, "dds.rds")             # DESeq2 object with filtered counts
saveRDS(vsd, "vsd.rds")             # transformed data (VST)
write.csv(zscore_mat, "zscore.csv") # z-scores for heatmaps in other programs

To load them again: dds <- readRDS("dds.rds").

Checkpoint. You do not need to save anything to continue: the package already includes the two main objects from this lesson, with the same names. In the following lessons it will be enough to load the package:

dds: the filtered and normalized DESeqDataSet (section 7).
zscore_mat: the z-score matrix (section 10).

13. Summary

Step	Key function	What for?
Get to know the data	`dim()`, `dplyr::count()`	Understand what we have before analyzing
Check the order	`all(colnames(...) == ...)`	Avoid the most dangerous error
Create the object	`DESeqDataSetFromTximport()`	Bring together counts, metadata, and design
Filter	`rowSums(counts(dds) >= 10) >= 10`	Remove genes with little information
Normalize	`estimateSizeFactors()`	Correct for depth and length
Transform	`vst()`	Stabilize the variance for visualization
Explore genes	`ggplot()` + `facet_wrap()`	Verify the biology and generate hypotheses
Heatmap	`scale()` (z-score)	See patterns of many genes at once
PCA	`prcomp()` + `ggplot()`	See the global structure of the data
Figure panel	`cowplot::plot_grid()`	Combine several plots into one figure
Join tables	`left_join()`	Add each volunteer’s information to each sample
Check batches	PCA colored by date (Challenge 4)	Detect technical variation before comparing groups

Common beginner mistakes

Not checking that the samples match between counts and metadata.
Passing normalized counts to DESeq(): always use the raw ones.
Computing z-scores or PCA with raw counts: use VST.
Treating the samples from the same patient as independent.
Confusing “it looks different in the plot” with “it is significant”.
Not checking for batch effects before comparing groups.

14. Next steps

The next step is the differential expression analysis: identifying, with a statistical model, which genes change between patients and controls within each cell type. We cover it in the lesson Differentially expressed genes between patients and controls with the DESeq() and results() functions of DESeq2. A good design should take into account the cell type, the sample collection batch, and the pairing of samples from the same volunteer.

To continue, click the Next lesson: Differentially expressed genes button at the bottom of this page.

Additional resources:

The official DESeq2 vignette.
The Bioconductor RNA-seq workflow.

References

Love MI, Huber W, Anders S (2014). Moderated estimation of fold change and dispersion for RNA-seq data with DESeq2. Genome Biology 15:550. doi:10.1186/s13059-014-0550-8
Soneson C, Love MI, Robinson MD (2015). Differential analyses for RNA-seq: transcript-level estimates improve gene-level inferences. F1000Research 4:1521. doi:10.12688/f1000research.7563.2
Patro R, et al. (2017). Salmon provides fast and bias-aware quantification of transcript expression. Nature Methods 14:417–419. doi:10.1038/nmeth.4197
Hernández-Ledesma AL, Coss-Navarrete EL, et al (2026) Gene expression profiling of dendritic cell tolerance dysfunction in women with systemic lupus erythematosus. Front. Immunol. 17:1771959. doi: 10.3389/fimmu.2026.1771959.

↑ Back to top

Session information

sessionInfo()
#> R version 4.6.2 (2026-10-29)
#> Platform: x86_64-pc-linux-gnu
#> Running under: Ubuntu 24.04.5 LTS
#>
#> Matrix products: default
#> BLAS:   /usr/lib/x86_64-linux-gnu/openblas-pthread/libblas.so.3
#> LAPACK: /usr/lib/x86_64-linux-gnu/openblas-pthread/libopenblasp-r0.3.26.so;  LAPACK version 3.12.0
#>
#> locale:
#>  [1] LC_CTYPE=C.UTF-8       LC_NUMERIC=C           LC_TIME=C.UTF-8
#>  [4] LC_COLLATE=C.UTF-8     LC_MONETARY=C.UTF-8    LC_MESSAGES=C.UTF-8
#>  [7] LC_PAPER=C.UTF-8       LC_NAME=C              LC_ADDRESS=C
#> [10] LC_TELEPHONE=C         LC_MEASUREMENT=C.UTF-8 LC_IDENTIFICATION=C
#>
#> time zone: UTC
#> tzcode source: system (glibc)
#>
#> attached base packages:
#> [1] stats4    stats     graphics  grDevices utils     datasets  methods
#> [8] base
#>
#> other attached packages:
#>  [1] cowplot_1.2.0               ggrepel_0.9.8
#>  [3] lubridate_1.9.5             forcats_1.0.1
#>  [5] stringr_1.6.0               dplyr_1.2.1
#>  [7] purrr_1.2.2                 readr_2.2.0
#>  [9] tidyr_1.3.2                 tibble_3.3.1
#> [11] ggplot2_4.0.3               tidyverse_2.0.0
#> [13] DESeq2_1.52.0               SummarizedExperiment_1.42.0
#> [15] Biobase_2.72.0              MatrixGenerics_1.24.0
#> [17] matrixStats_1.5.0           GenomicRanges_1.64.0
#> [19] Seqinfo_1.2.0               IRanges_2.46.0
#> [21] S4Vectors_0.50.3            BiocGenerics_0.58.1
#> [23] generics_0.1.4              GeneExprLupusMx_0.1.0.9000
#>
#> loaded via a namespace (and not attached):
#>  [1] gtable_0.3.6        xfun_0.62           bslib_0.12.0
#>  [4] lattice_0.23-1      tzdb_0.5.0          vctrs_0.7.3
#>  [7] tools_4.6.2         parallel_4.6.2      pkgconfig_2.0.3
#> [10] Matrix_1.7-6        RColorBrewer_1.1-3  S7_0.2.2
#> [13] desc_1.4.3          lifecycle_1.0.5     compiler_4.6.2
#> [16] farver_2.1.2        textshaping_1.0.5   codetools_0.2-20
#> [19] htmltools_0.5.9     sass_0.4.10         yaml_2.3.12
#> [22] pkgdown_2.2.1       pillar_1.11.1       jquerylib_0.1.4
#> [25] MASS_7.3-66         BiocParallel_1.46.0 DelayedArray_0.38.2
#> [28] cachem_1.1.0        abind_1.4-8         nlme_3.1-171
#> [31] tidyselect_1.2.1    locfit_1.5-9.12     digest_0.6.39
#> [34] stringi_1.8.9       splines_4.6.2       labeling_0.4.3
#> [37] fastmap_1.2.0       grid_4.6.2          cli_3.6.6
#> [40] SparseArray_1.12.3  magrittr_2.0.5      S4Arrays_1.12.1
#> [43] utf8_1.2.6          withr_3.0.3         scales_1.4.0
#> [46] timechange_0.4.0    rmarkdown_2.32      XVector_0.52.0
#> [49] otel_0.2.0          hms_1.1.4           ragg_1.5.2
#> [52] evaluate_1.0.5      knitr_1.52          mgcv_1.9-4
#> [55] rlang_1.3.0         Rcpp_1.1.2          glue_1.8.1
#> [58] jsonlite_2.0.0      R6_2.6.1            systemfonts_1.3.2
#> [61] fs_2.1.0

Importing, normalizing, and visualizing the data

2026-10-31

Welcome

Lesson map

Glossary

1. Biological context: what are we studying?

2. RNA-seq in two minutes

3. Setup

Installation

Load the packages

4. Step 1: get to know the data

4.1 The count matrix: filtered_txi

4.2 The metadata: metadata_cleaned

4.3 Do the counts and the metadata match?

4.4 Each volunteer’s information: volunteer_info

5. Step 2: create the DESeqDataSet object

6. Step 3: filter lowly expressed genes

7. Step 4: normalization

7.1 Why do we need to normalize?

7.2 How does DESeq2 normalize?

8. Step 5: variance stabilizing transformation (VST)

8.1 Why another transformation?

8.2 Did the normalization work?

9. Step 6: explore individual genes

9.1 Do the data make biological sense?

9.2 The interferon signature in lupus

10. Step 7: heatmap with z-scores

11. Step 8: principal component analysis (PCA)

11.1 What is a PCA?

11.2 Compute the PCA

11.3 Plot the PCA

11.4 Looking within a single cell type

11.5 Challenges: what other variables explain the variation?

11.6 To finish: the article figure

12. Save your results (optional)

13. Summary

Common beginner mistakes

14. Next steps

References

Session information

4.1 The count matrix: `filtered_txi`

4.2 The metadata: `metadata_cleaned`

4.4 Each volunteer’s information: `volunteer_info`

5. Step 2: create the `DESeqDataSet` object
