How to use the package functions

get_heatmap_mat(), create_heatmap(), process_go() and reduce_go_terms()

2026-10-31

Source: vignettes/articles/functions_en.Rmd
functions_en.Rmd

Welcome

Besides the data, GeneExprLupusMx includes four functions used throughout the lessons. This guide shows how to use them with your own data, step by step and with examples you can copy.

Function What is it for? Used in
get_heatmap_mat() Turns a DESeqDataSet into a z-score matrix ready for a heatmap Lesson 3
create_heatmap() Draws a ComplexHeatmap heatmap with a color annotation; several can be stacked Lesson 3
process_go() Reduces the redundant GO terms of one enrichment file and plots the parent terms —
reduce_go_terms() Applies process_go() to all the enrichment files in a folder —

What you need to know beforehand: you should have completed the lessons From RNA-seq counts to data exploration (VST and z-scores) and Biological functions of differentially expressed genes (functional enrichment).

Estimated time: 45 minutes.

Glossary

  • VST (variance stabilizing transformation): DESeq2 transformation that makes the variance independent of the mean expression.
  • z-score: how many standard deviations a value is from the gene mean; it allows comparing genes with different expression levels.
  • Semantic similarity: how similar two GO terms are according to their position in the Gene Ontology hierarchy.
  • Parent term: the term that represents a group of similar GO terms.
  • Treemap: plot of nested rectangles; here each rectangle is a term and the color indicates its parent term.

1. Setup

library(GeneExprLupusMx) # package data and functions
library(DESeq2)          # DESeqDataSet object
library(ComplexHeatmap)  # heatmaps
library(dplyr)           # table manipulation

# Large package objects: downloaded only the first time (see ?download_data)
dds <- download_data("dds")

Colors (the same as in the lessons):

cell_color  <- c(monocyte = "black", moDC = "palevioletred", tolDC = "gold1")
group_color <- c(Ctrl = "#96d4ccff", SLE = "#b493b4ff")

2. get_heatmap_mat(): from the DESeqDataSet to z-scores

get_heatmap_mat() takes a DESeqDataSet and does three things:

  1. Applies the VST transformation.
  2. Removes genes without variation across samples.
  3. Converts each gene to z-scores and orders the columns as you indicate.

We use the dds checkpoint and keep the monocytes. Since the subset has a single cell type, we change the design to ~ Group:

mo <- dds[, dds$Cell_type == "monocyte"]
design(mo) <- ~ Group # a single cell type: compare groups only

mo_order <- colnames(mo)[order(mo$Group)] # controls first, then patients
mo_mat <- get_heatmap_mat(mo, sample_order = mo_order)

dim(mo_mat)        # genes x samples
#> [1] 13569    33
round(mo_mat[1:3, 1:4], 2)
#>          QR011_0 QR013_0 QR022_0 QR024_0
#> A1BG         0.6   -0.11    0.56   -0.20
#> A1BG-AS1     0.6    0.45   -2.51   -0.21
#> A2M         -0.2    0.48    2.84    0.30

Each row has mean 0 and standard deviation 1:

summary(round(rowMeans(mo_mat), 10))
#>    Min. 1st Qu.  Median    Mean 3rd Qu.    Max.
#>       0       0       0       0       0       0
summary(apply(mo_mat, 1, sd))
#>    Min. 1st Qu.  Median    Mean 3rd Qu.    Max.
#>       1       1       1       1       1       1

With your data: any DESeqDataSet works. The sample_order argument is optional; if you omit it, the columns keep the order of the object.

3. create_heatmap(): a heatmap ready to combine

create_heatmap() draws the matrix with ComplexHeatmap, adds a color bar on the right (for example, the cell type color) and lets you split the columns with split. We plot the interferon-stimulated genes (ISGs) from lesson 2 in monocytes, split by group:

isg_extended <- c("IFI27", "IFI44L", "IFI44", "USP18", "IFI6", "ISG15", "MX1", "RSAD2", "IFIT1", "OAS1")

ht_mo <- create_heatmap(mo_mat[isg_extended, ],
                        color = cell_color[["monocyte"]],
                        split = mo$Group[match(mo_order, colnames(mo))])

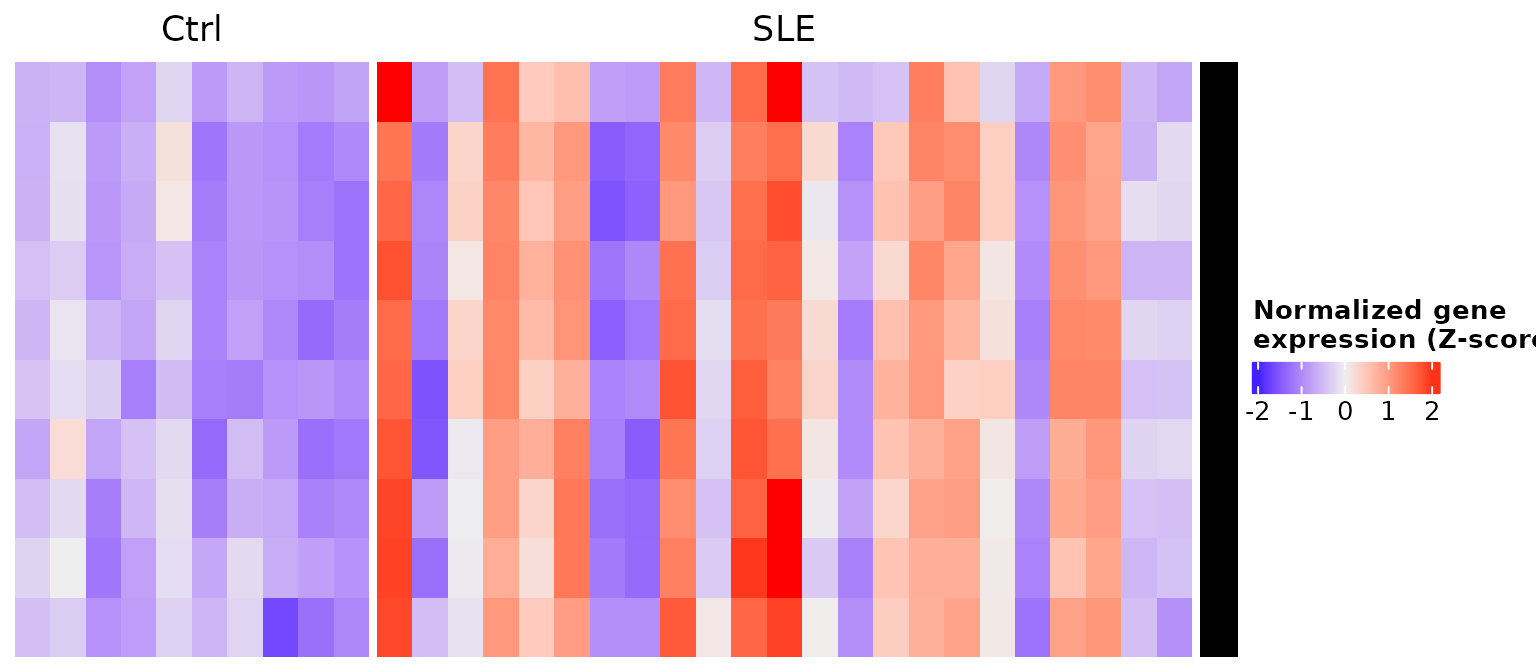

draw(ht_mo)

The function does not show gene names, so it works the same with thousands of genes. Since it returns a Heatmap object, you can combine it with other ComplexHeatmap pieces; for example, add the names with a text annotation:

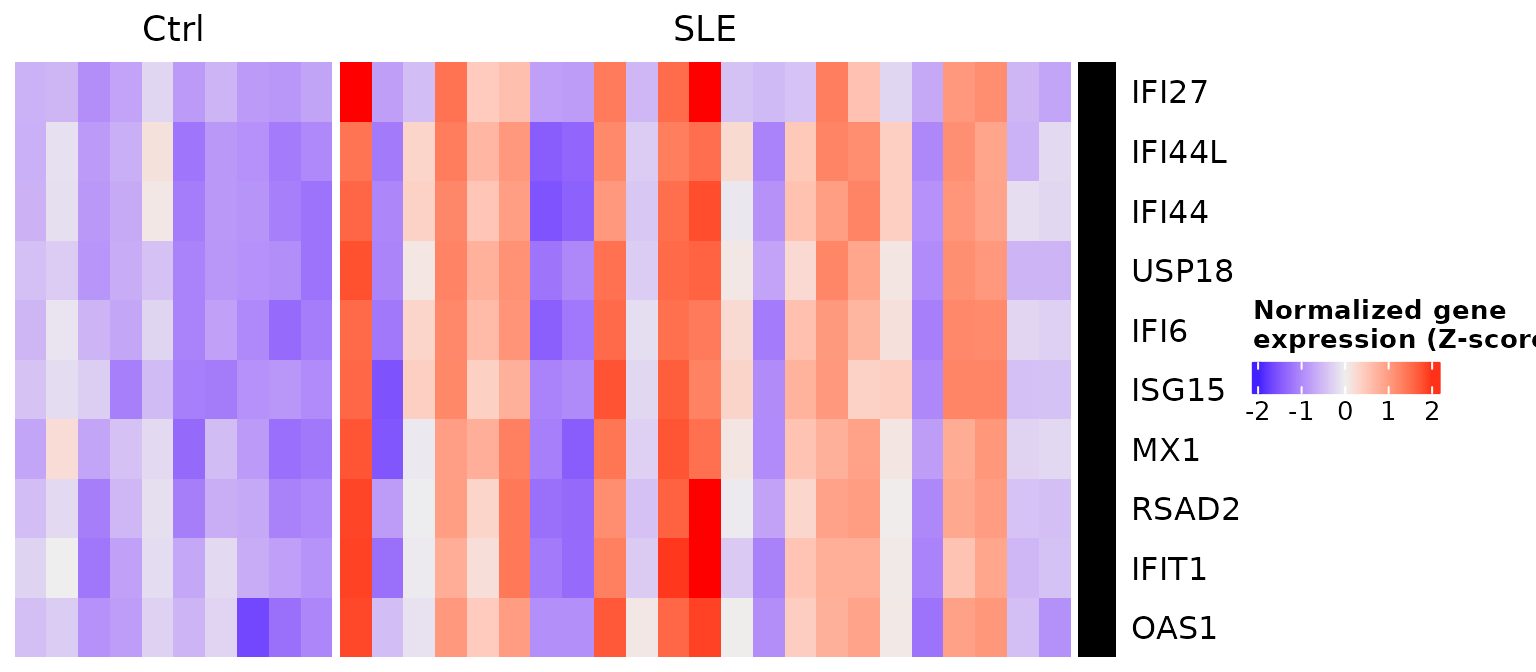

draw(ht_mo + rowAnnotation(gene = anno_text(isg_extended)))

3.1 Stacking several heatmaps

The advantage of create_heatmap() is that the heatmaps share the same format and can be stacked with %v%. For that, the columns must be the same in all of them: we use each volunteer identifier (the part of sample_ID before the underscore) and the same order in the three cell types.

volunteer_order <- unique(sub("_.*", "", mo_order)) # same volunteer order for all

isg_mats <- lapply(c("monocyte", "moDC", "tolDC"), function(cell) {
  sub_dds <- dds[, dds$Cell_type == cell]
  design(sub_dds) <- ~ Group
  mat <- get_heatmap_mat(sub_dds)
  colnames(mat) <- sub("_.*", "", colnames(mat)) # QR011_0 -> QR011
  mat[isg_extended, volunteer_order]
})
names(isg_mats) <- c("monocyte", "moDC", "tolDC")
sapply(isg_mats, dim)
#>      monocyte moDC tolDC
#> [1,]       10   10    10
#> [2,]       33   33    33
group_split <- volunteer_info$Group[match(volunteer_order, volunteer_info$Volunteer_ID)]

ht_list <- create_heatmap(isg_mats$monocyte, cell_color[["monocyte"]], group_split) %v%
  create_heatmap(isg_mats$moDC,  cell_color[["moDC"]],  group_split) %v%
  create_heatmap(isg_mats$tolDC, cell_color[["tolDC"]], group_split)

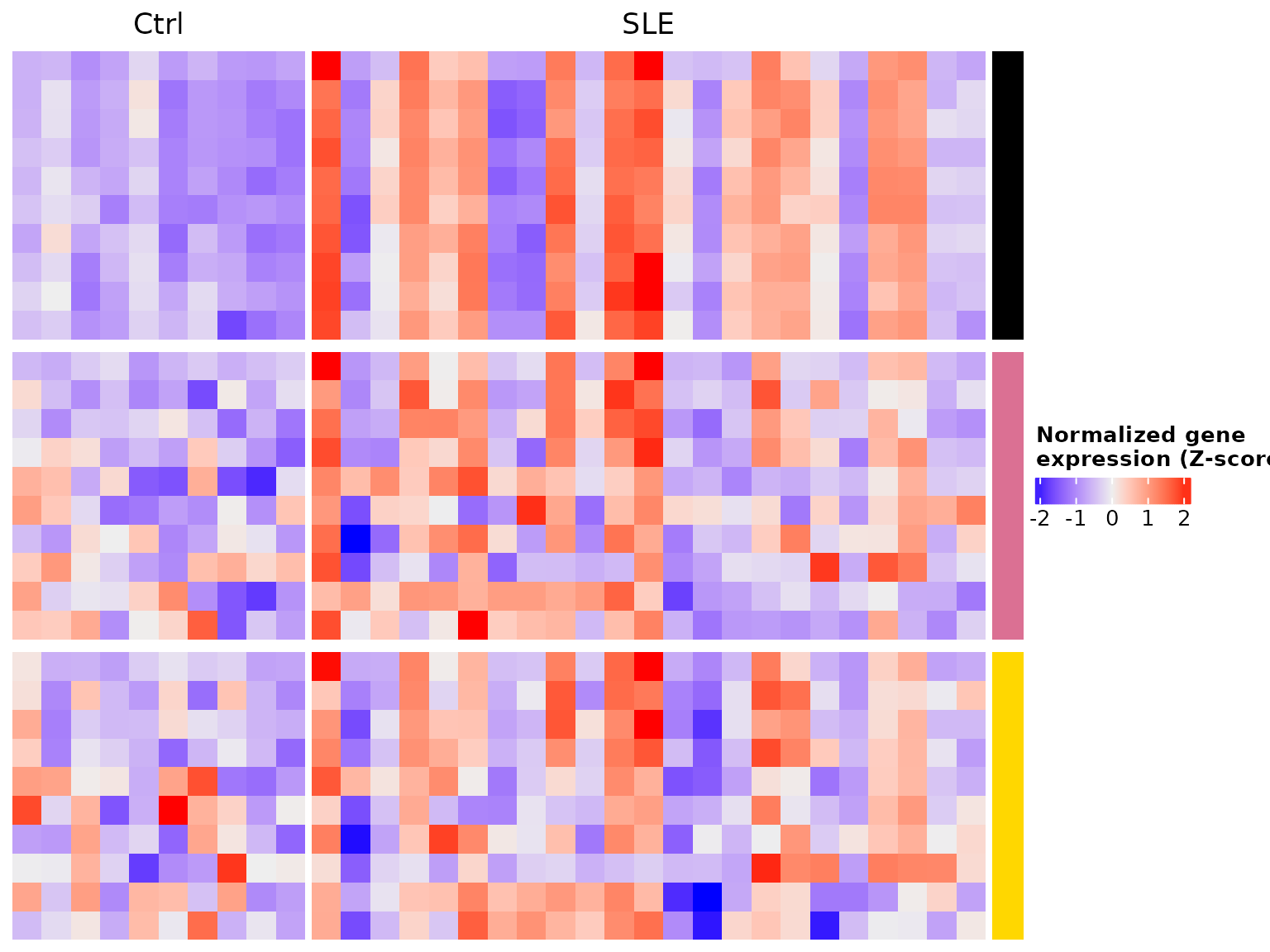

draw(ht_list)

ISGs are high mainly in the monocytes of some patients (black block, SLE columns), as we saw in lesson 2.

Challenge 1. Make a heatmap of tolDCs with the cholesterol synthesis genes from lesson 7 (CYP51A1, MSMO1, MVD, IDI1, EBP, STARD4), split by group.

Show solution
chol_genes <- c("CYP51A1", "MSMO1", "MVD", "IDI1", "EBP", "STARD4")

tol <- dds[, dds$Cell_type == "tolDC"]
design(tol) <- ~ Group
tol_order <- colnames(tol)[order(tol$Group)]
tol_mat <- get_heatmap_mat(tol, sample_order = tol_order)

ht_tol <- create_heatmap(tol_mat[chol_genes, ], color = cell_color[["tolDC"]],
                         split = tol$Group[match(tol_order, colnames(tol))])

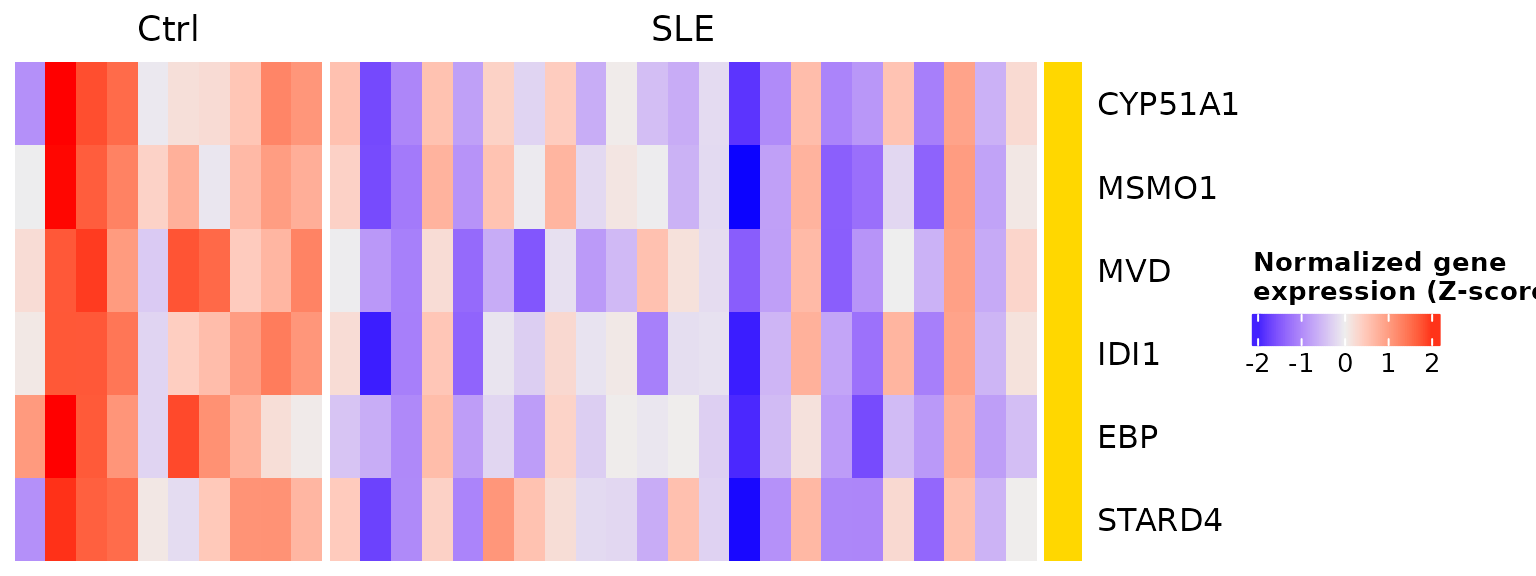

draw(ht_tol + rowAnnotation(gene = anno_text(chol_genes)))

In the patients’ tolDCs these genes tend to be lower: it is the weaker induction of cholesterol synthesis we found in lesson 7.

4. process_go(): reducing redundant GO terms

An enrichment analysis usually returns hundreds of GO terms, many nearly identical (“response to virus”, “defense response to virus”…). process_go() uses the rrvgo package to group them by semantic similarity and summarize them into parent terms.

The function reads an .RData file containing a single table with three columns:

Column Content
go_id Term identifier (GO:0051607)
term Term name
p.adjust Adjusted p-value

The file name must follow the pattern UP_GO_<name>.RData or DOWN_GO_<name>.RData. We prepare one with the GO:BP terms of the genes that go up in the patients’ monocytes (go_results checkpoint from lesson 4):

go_dir  <- file.path(tempdir(), "go_input")   # input files
out_dir <- file.path(tempdir(), "go_output")  # .RData results
fig_dir <- file.path(tempdir(), "go_figures") # plots
for (d in c(go_dir, out_dir, fig_dir)) dir.create(d, showWarnings = FALSE)

go_table <- go_results %>%
  filter(query == "SLE_UP_monocyte", source == "GO:BP") %>%
  transmute(go_id = term_id, term = term_name, p.adjust = p_value)
nrow(go_table)
#> [1] 183

save(go_table, file = file.path(go_dir, "UP_GO_monocyte.RData"))

Now we run process_go(). It needs at least 40 distinct GO terms; with fewer, it skips the file:

process_go(f = file.path(go_dir, "UP_GO_monocyte.RData"),
          direction = "UP", outdir = out_dir, figdir = fig_dir)

The function saves two .RData files and two plots:

list.files(out_dir)
#> [1] "geneListAndGOterms_UP_monocyte.RData"
#> [2] "reducedTerms_simMatrix_UP_monocyte.RData"
list.files(fig_dir)
#> [1] "GOTerm_UP_ReducedBar_monocyte.png" "GOTerm_UP_Treemap_monocyte.png"

reducedTerms contains each term with its parent term:

load(file.path(out_dir, "reducedTerms_simMatrix_UP_monocyte.RData"))
reducedTerms %>%
  dplyr::count(parentTerm, sort = TRUE) %>%
  head(5)
#>                                                     parentTerm  n
#> 1                                 type I interferon production 34
#> 2                                response to type I interferon 27
#> 3                                   response to other organism 19
#> 4                                    defense response to virus 15
#> 5 pyrimidine deoxyribonucleoside diphosphate metabolic process 13

The 179 terms are summarized into 21 parent terms, led by type I interferon production and response: the interferon signature of the patients’ monocytes.

Besides saving them as PNG files in figdir, you can redraw the plots directly from reducedTerms. The treemap shows all the terms, colored by their parent term:

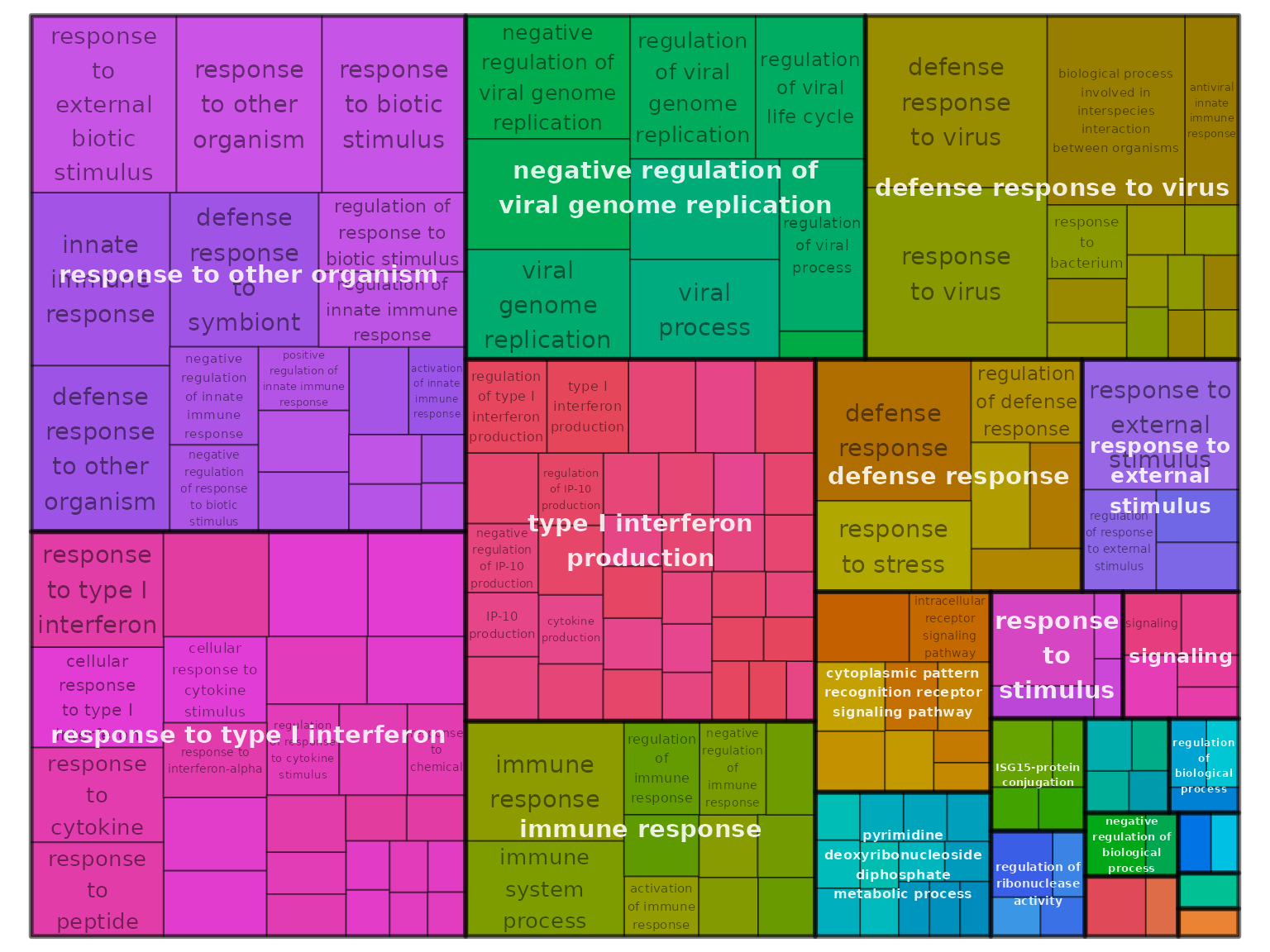

rrvgo::treemapPlot(reducedTerms)

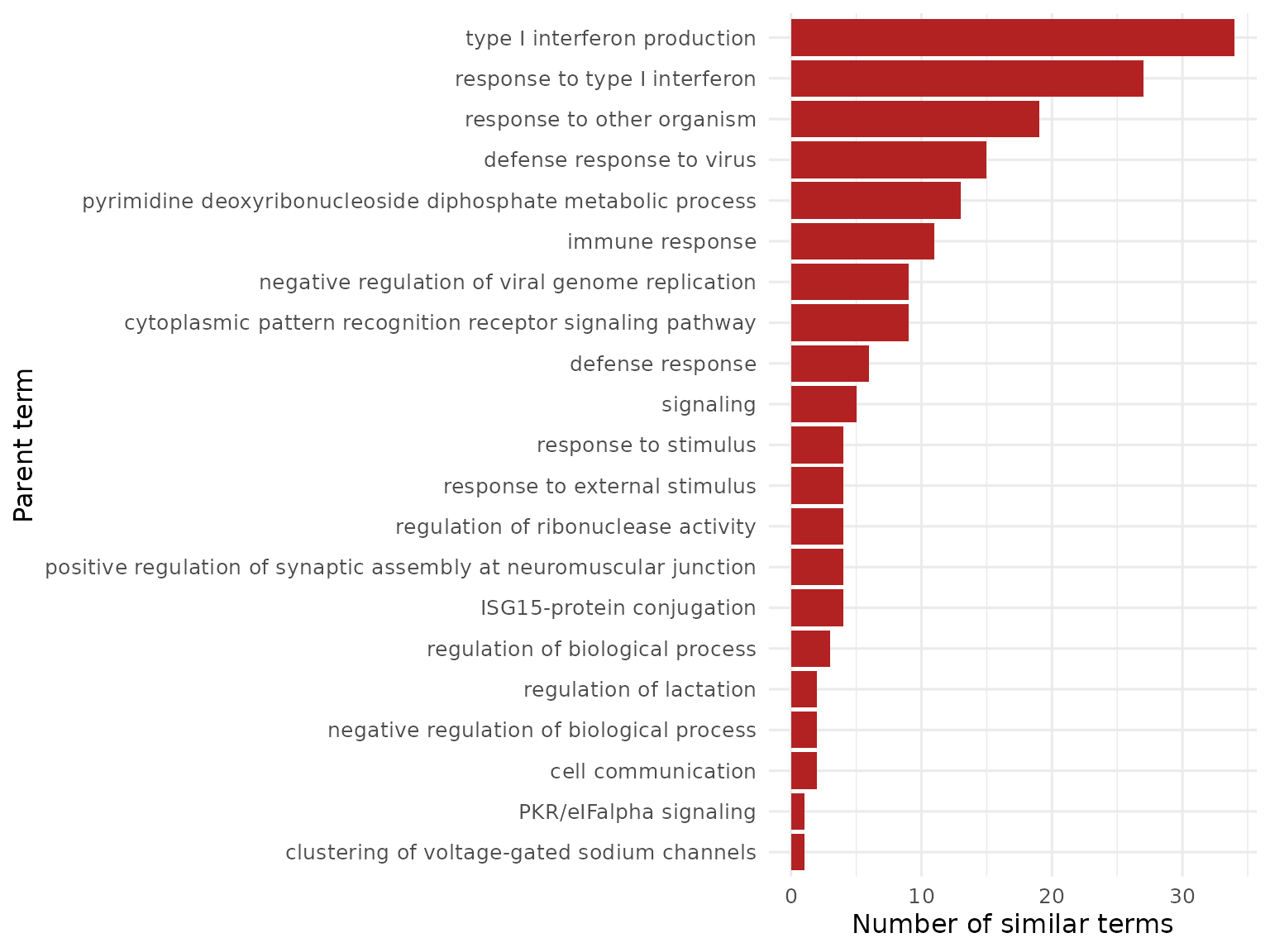

The bar plot shows how many terms each parent term groups:

library(ggplot2)
reducedTerms %>%
  dplyr::count(parentTerm, name = "count") %>%
  ggplot(aes(x = reorder(parentTerm, count), y = count)) +
  geom_col(fill = "firebrick") +
  coord_flip() +
  labs(x = "Parent term", y = "Number of similar terms") +
  theme_minimal(base_size = 12)

5. reduce_go_terms(): many files at once

If you have several lists (for example, one per cell type and direction), save one file per list in the same folder and use reduce_go_terms(). The function finds all the UP_GO_*.RData and DOWN_GO_*.RData files and applies process_go() to each one:

lists <- c(DOWN_GO_moDC = "SLE_DOWN_moDC", UP_GO_tolDC = "SLE_UP_tolDC")
for (f in names(lists)) {
  go_table <- go_results %>%
    filter(query == lists[[f]], source == "GO:BP") %>%
    transmute(go_id = term_id, term = term_name, p.adjust = p_value)
  save(go_table, file = file.path(go_dir, paste0(f, ".RData")))
}
list.files(go_dir)
#> [1] "DOWN_GO_moDC.RData"   "UP_GO_monocyte.RData" "UP_GO_tolDC.RData"
reduce_go_terms(indir = go_dir, outdir = out_dir, figdir = fig_dir)

reduce_go_terms() processes the three files and saves their results in the same format as process_go(). Each file takes about a minute, because rrvgo computes the similarity between all terms.

Challenge 2. Run process_go() on the DOWN_GO_moDC.RData file. Which parent term groups the most terms?

Show solution
process_go(f = file.path(go_dir, "DOWN_GO_moDC.RData"),
          direction = "DOWN", outdir = out_dir, figdir = fig_dir)

load(file.path(out_dir, "reducedTerms_simMatrix_DOWN_moDC.RData"))
dplyr::count(reducedTerms, parentTerm, sort = TRUE) %>% head(3)

The most frequent parent term is “T cell activation”: the genes that go down in the patients’ moDCs are mostly T lymphocyte genes (CD28, CD40LG, ZAP70), as we saw in lesson 4.

6. Summary

Function Input Output
get_heatmap_mat() DESeqDataSet z-score matrix (genes × samples)
create_heatmap() Matrix, color and split Heatmap object; stack it with %v%
process_go() One UP_GO_*.RData or DOWN_GO_*.RData file Reduced terms (.RData), treemap and bars (.png)
reduce_go_terms() A folder with several files The same as process_go(), for each file

Common beginner mistakes

  • Forgetting to change the design when taking a single cell type: ~ Cell_type + Group makes no sense with only one cell type.
  • Stacking heatmaps with different columns: %v% needs the same columns, in the same order.
  • Misnaming the GO files: reduce_go_terms() only finds UP_GO_<name>.RData and DOWN_GO_<name>.RData files.
  • Saving more than one object in the .RData: process_go() expects exactly one table per file.

To go back to the lessons, see Get started with GeneExprLupusMx.
